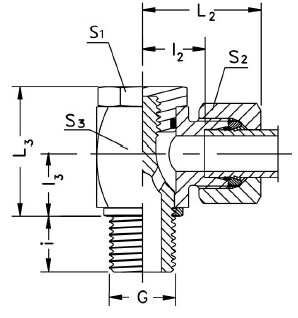

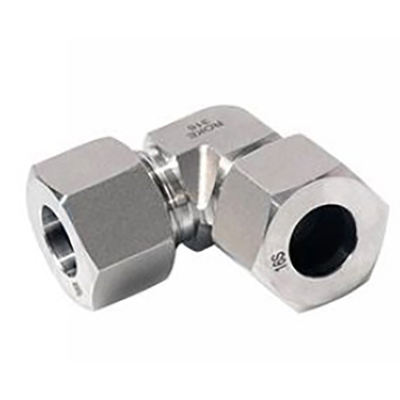

Low Price High Pressure Banjo Elbow-WH-M Hydraulic Fitting for Hydraulic Cylinder Parts

Send Inquiry

Product Description

The term "High Pressure Banjo Elbow - WH-M" does not correspond to a widely recognized or standard hydraulic fitting designation.
It is possible that it refers to a specific type or design of hydraulic banjo elbow fitting, but without further information or
context, it is difficult to provide specific details about its application.
However, in general, banjo fittings are commonly used in hydraulic systems to provide a secure and leak-free connection between a hydraulic hose or pipe and a component, such as a cylinder, valve, or pump. Banjo fittings typically have a hollow bolt or tube with a hole through the side, allowing fluid to flow through the fitting.

Here are some general applications where banjo fittings, including banjo elbow fittings, may be used: 1.Hydraulic Brake Systems: Banjo fittings are commonly used in hydraulic brake systems in automotive vehicles, motorcycles, and other applications. They provide a connection between the brake lines and the brake calipers or wheel cylinders. 2.Fuel Injection Systems: Banjo fittings can be found in high-pressure fuel injection systems in automotive engines. They help connect the fuel lines to the fuel injectors, ensuring proper fuel delivery and pressure. 3.Hydraulic Power Steering Systems: Banjo fittings may be used in hydraulic power steering systems to connect the power steering hoses to the steering gear or steering rack, allowing for smooth and precise steering operation. 4.Hydraulic Clutch Systems: Banjo fittings can be employed in hydraulic clutch systems, connecting the hydraulic lines to the clutch slave cylinder or master cylinder. 5.Industrial Machinery: Banjo fittings may be used in various industrial machinery and equipment that utilize hydraulic systems, such as hydraulic presses, machine tools, and hydraulic power units. It's important to note that the specific application and compatibility of hydraulic fittings, including banjo fittings, can vary depending on factors such as system requirements, operating conditions, and hydraulic system specifications. It is always recommended to consult the manufacturer's guidelines or seek assistance from a hydraulic expert to ensure the proper selection and application of hydraulic fittings for a specific system.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

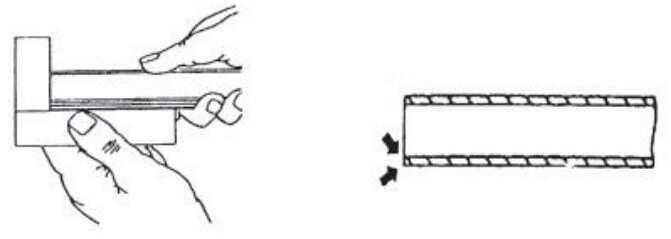

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.

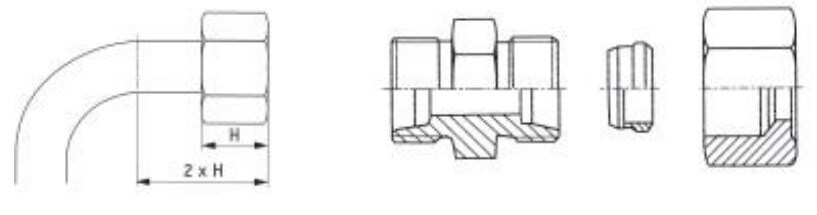

3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

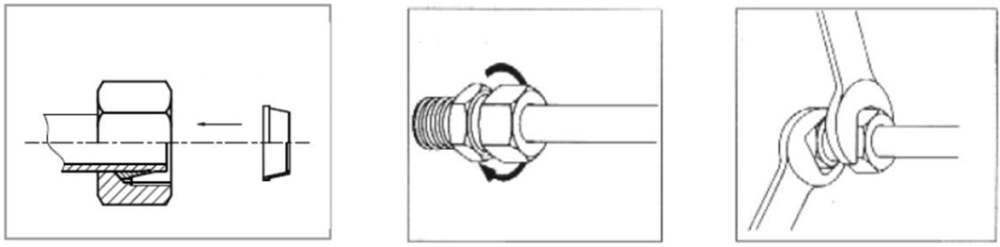

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.

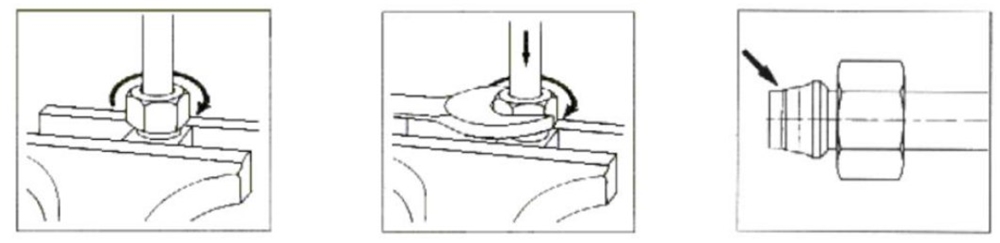

6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

Raydafon., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

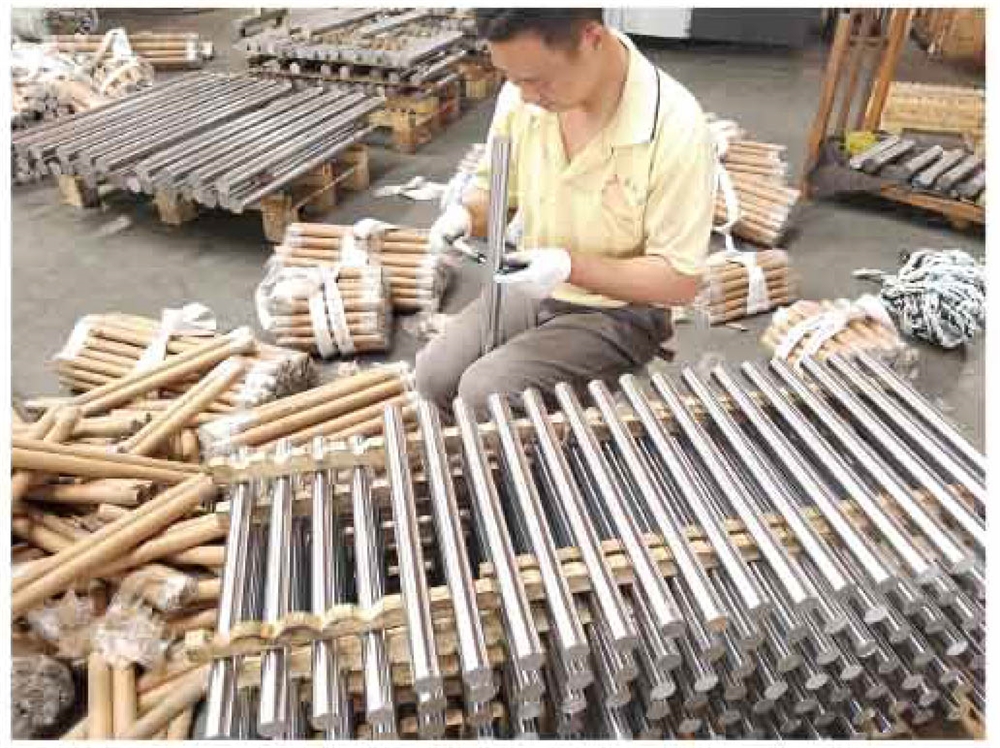

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

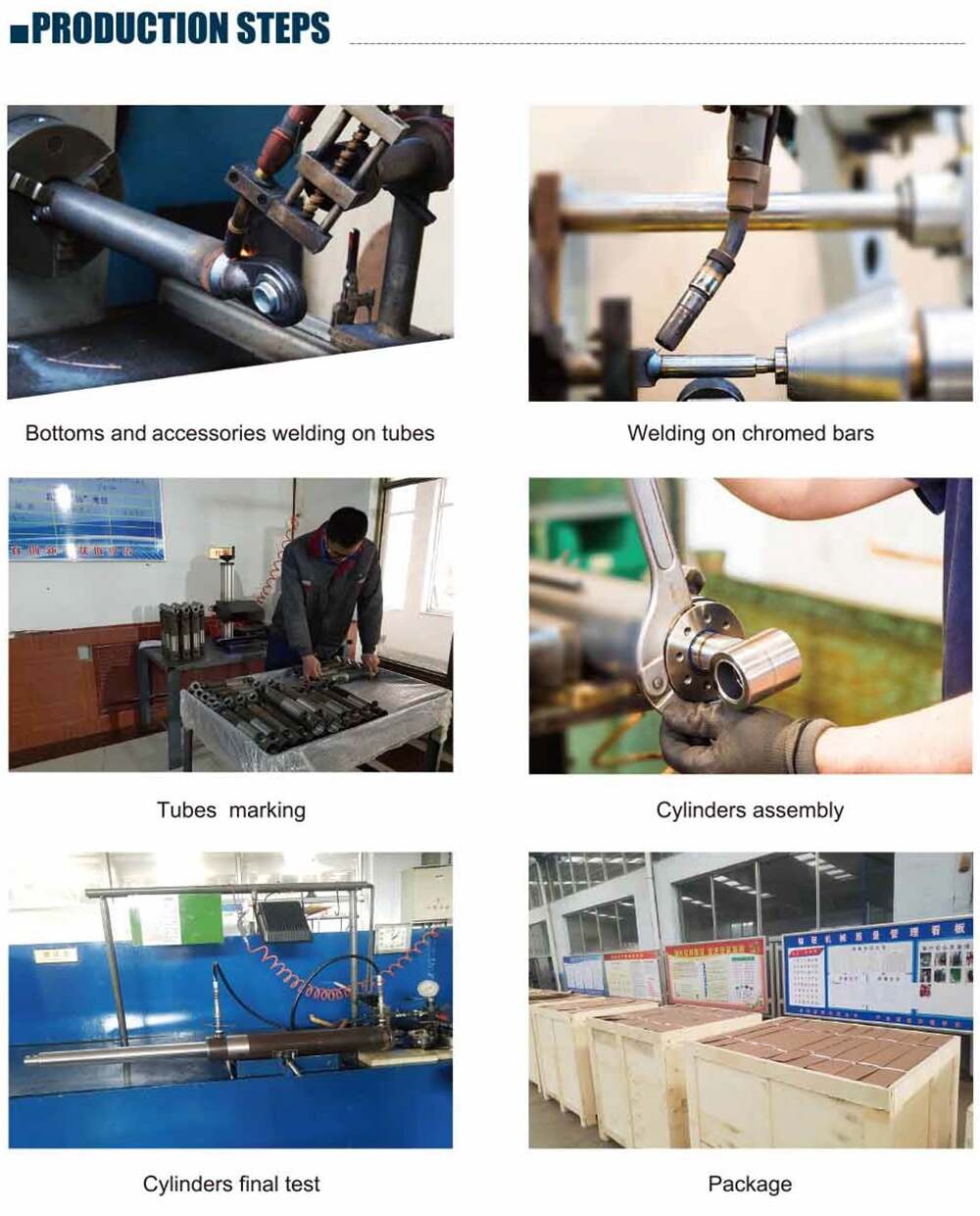

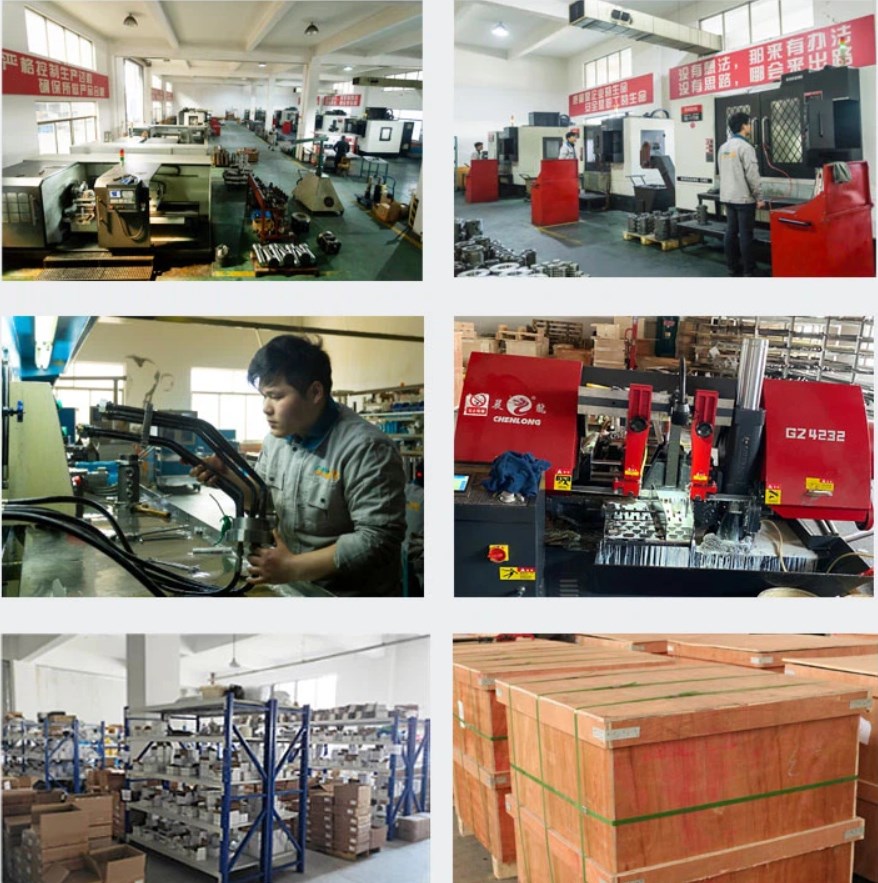

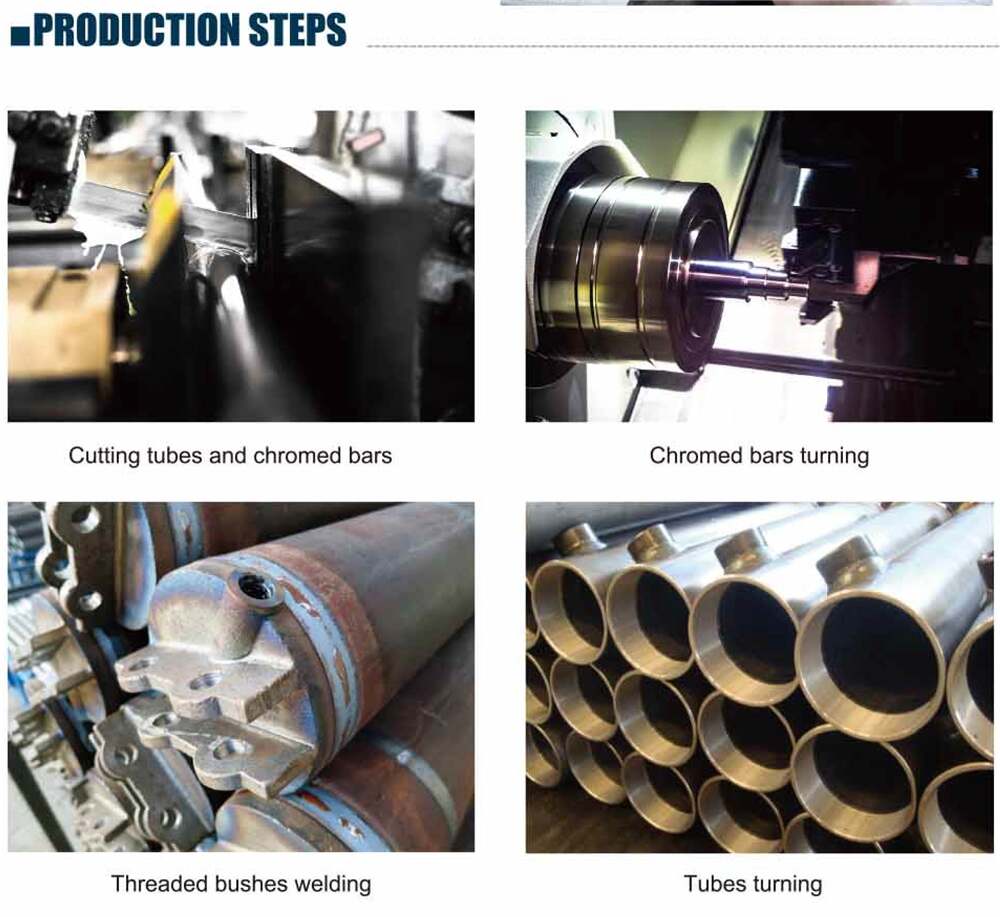

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.

Hot Tags: Low Price High Pressure Banjo Elbow-wh-m Hydraulic Fitting For Hydraulic Cylinder Parts - Buy High Pressure Banjo Elbow-wh-m Hydraulic Fitting,Hydraulic Fittings,Hydraulic Cylinder Parts Product on Raydafon
