Made in China Supply High Precision High Performance Low Noise Chrome Steel Single Row Tapered Roller Bearings

Single Row Tapered Roller BearingsSingle row tapered roller bearings are a common type that is separable. The inner and outer rings of the bearing have tapered raceways, and the rollers are in the shape of a truncated cone. The rollers are in line contact with the raceways and can bear heavier radia......

Send Inquiry

Product Description

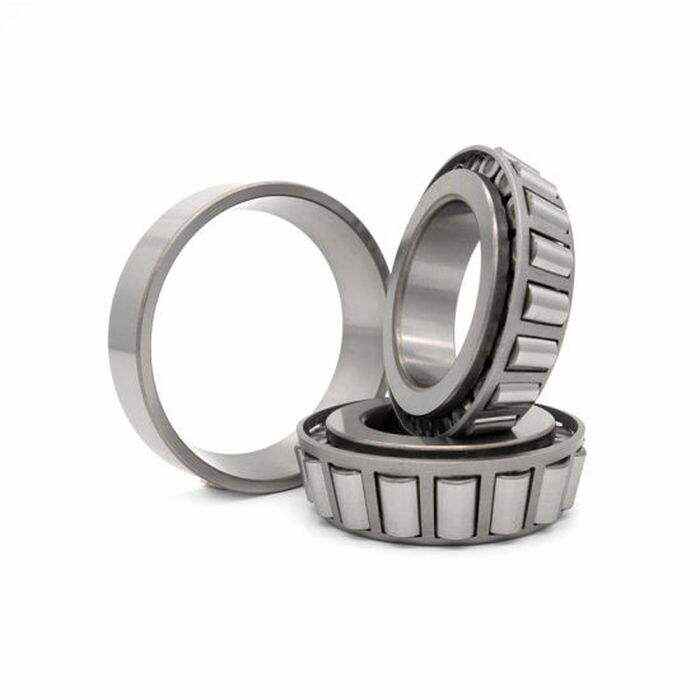

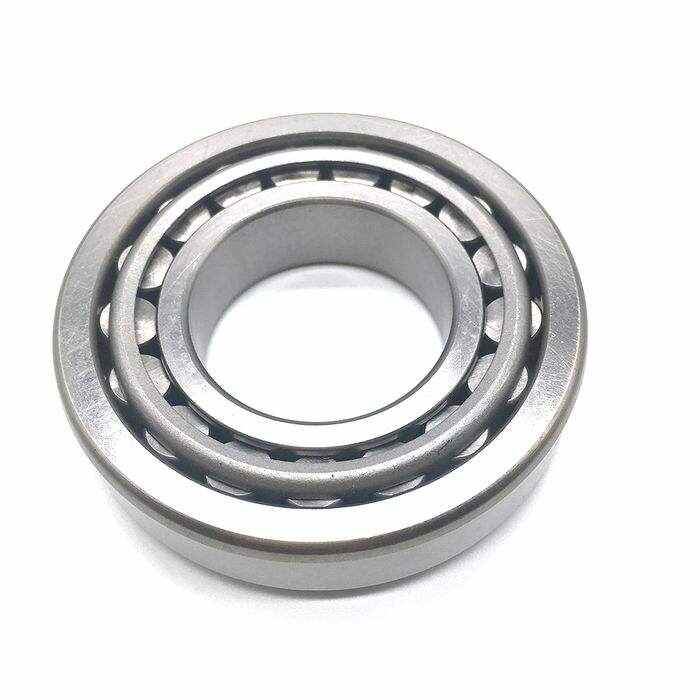

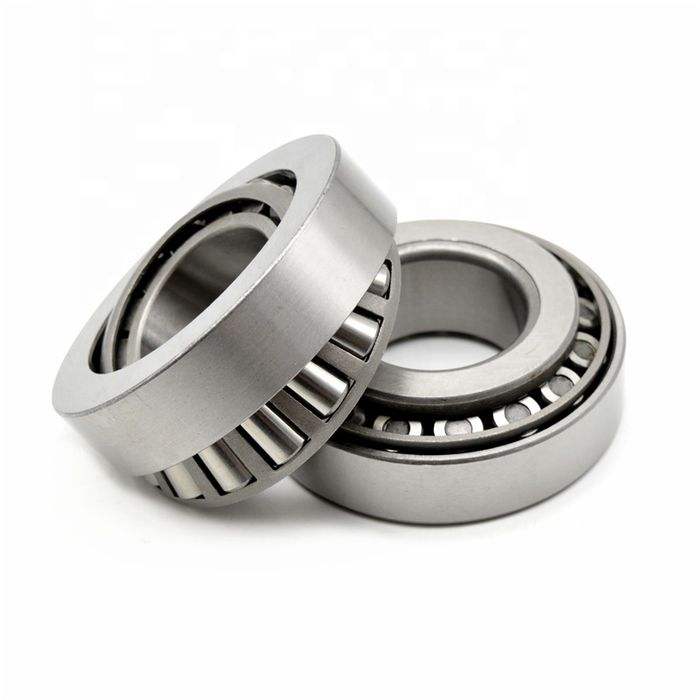

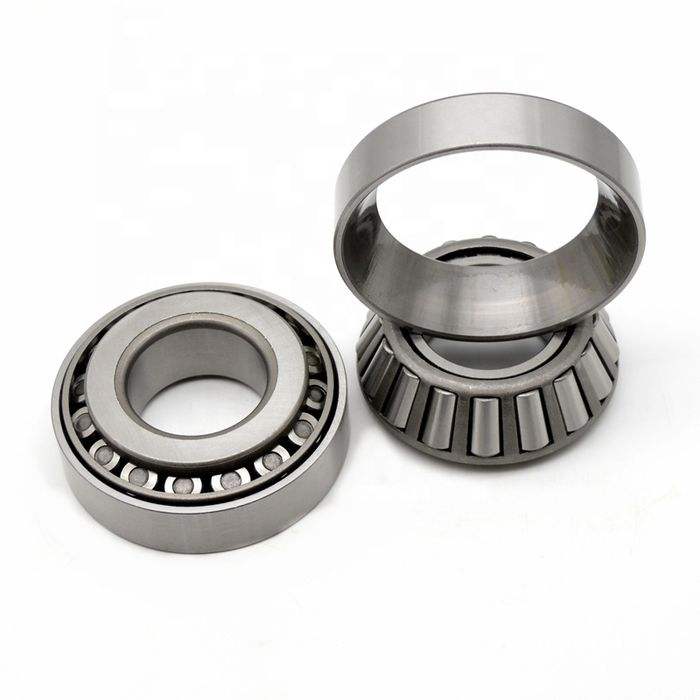

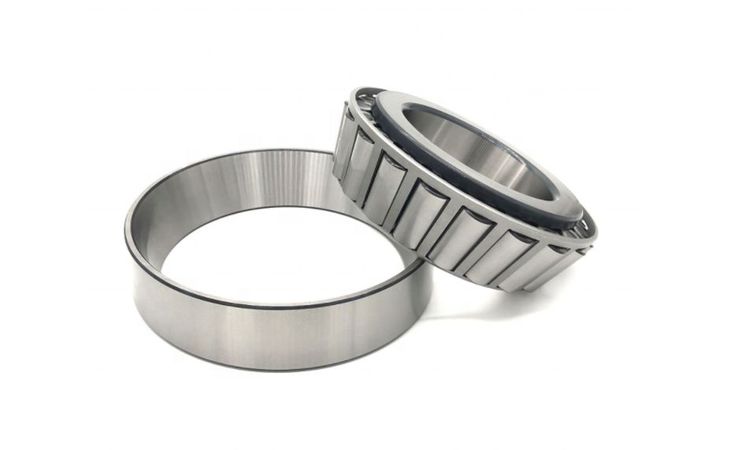

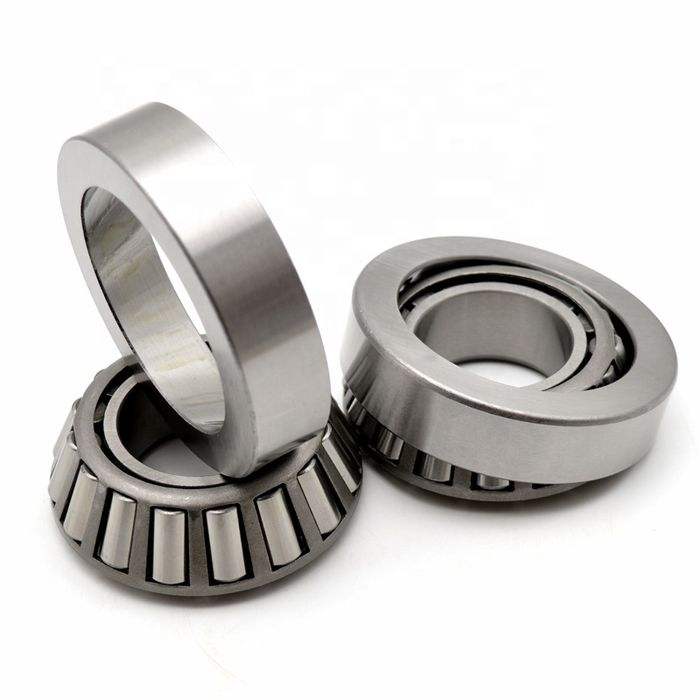

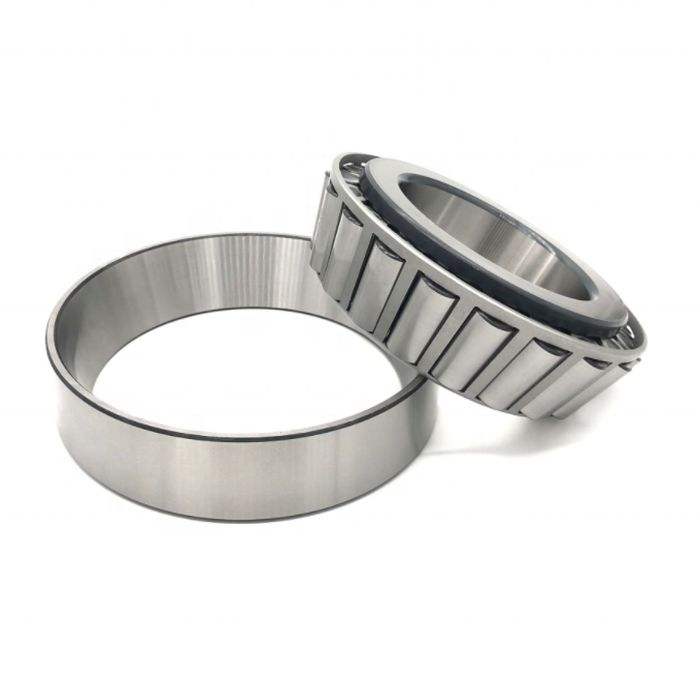

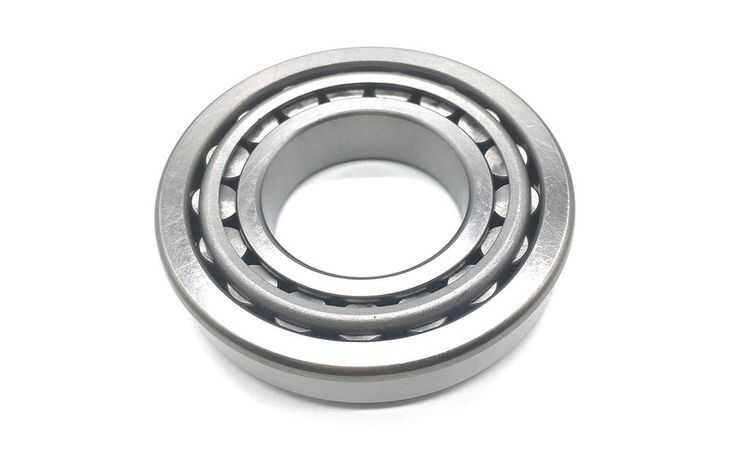

Single Row Tapered Roller Bearings

Single row tapered roller bearings are a common type that is separable. The inner and outer rings of the bearing have tapered raceways, and the rollers are in the shape of a truncated cone. The rollers are in line contact with the raceways and can bear heavier radial and axial combined loads and axial loads. The larger the contact angle, the higher the axial load capacity; conversely, the smaller the contact angle, the lower the axial load capacity. Single row tapered roller bearings are designed to extend the contact line of the rollers with the inner and outer raceways and then roll at the same point on the bearing axis. Single row tapered roller shafts mostly use inches.

Applications of single row tapered roller bearings Single row tapered roller bearings are widely used in industries: -- mining -- petroleum -- heavy machinery -- wind power -- engineering machinery -- and other industries

Bearing NO.	Boundary dimensions (mm)				Mass (kg)
EPT	d	D	T		Mass (kg)
30202	15	35	11.75	0.054
30302	15	42	14.25	0.096
30203	17	40	13.25	0.056
32203	17	40	17.25	0.105
30303	17	47	15.25	0.129
32303	17	47	20.25	0.18
32004X	20	42	15	0.108
30204	20	47	15.25	0.092
30304	20	52	16.25	0.188
32304	20	52	22.25	0.241
32005X	25	47	15	0.12
33005	25	47	17	0.139
30205	25	52	16.25	0.155
32205	25	52	19.25	0.186
33205	25	52	22	0.214
31305	25	62	18.25	0.297
30305	25	62	18.25	0.289
32305	25	62	25.25	0.362
320/28X	28	52	16	0.156
32006X	30	55	17	0.195
