Design feature

   1.Because of elastic sleeve distortion and the teeth clearance between ring holes of half-coupling,the coupling has some compensatory of relativity shir and isolation properties.

   2.Working temperature is -20℃~+70℃

   3.The marking method of Keyway forms and shaft holes size must be in accord with GB/T3852-1997

Mark descriptions

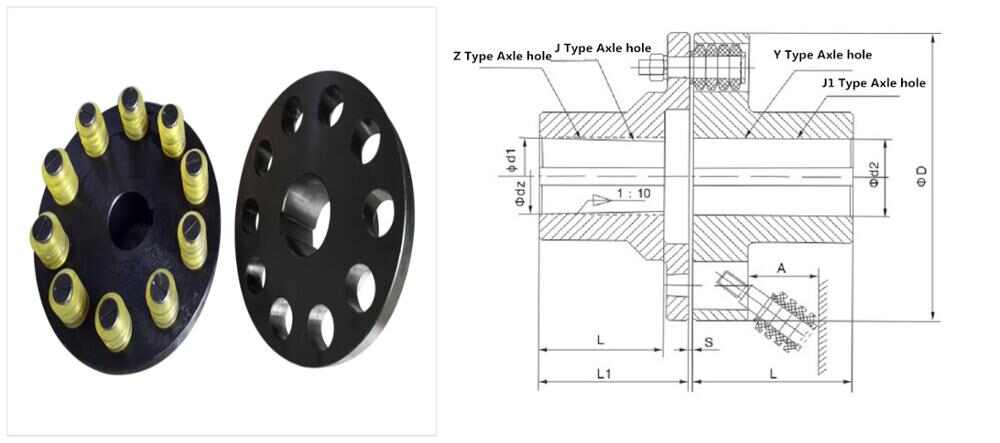

  For Z and J type hole with counter bore, the length of axle hole means the length of the matching hole,that is the L in next drawing.

NOTE:

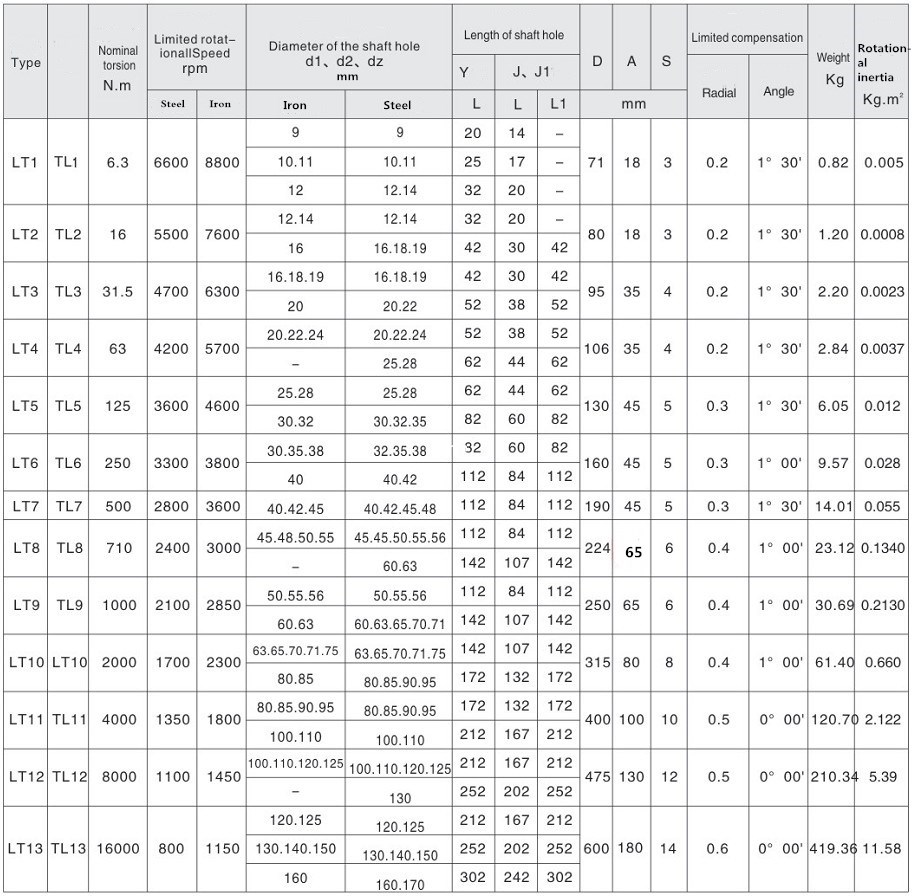

1. Coupling weights in the sheet are calculated according to the minimum diameter and maximum length of the shaft hole.

2.Short overloading can not exceed 2 times rated normal torque.

3.Type of shaft holes, the lengths of L and L1 also can be produced as customer requirements.

4. Rotational inertia are similar value.

Advantages of JUDE gear coupling

1. High and stable quality level

2.Installed horizontally and vertically without using any social tools.

3. Low-Cost maintenance

4. Compensation for axial, radial and angular misalignment.

5. Convenient axial plugging assembly.

6. No Embrittlement at low temperature.

7. Good slippery and frictional properties.

8. Resistance to chemical corrosion.

9. Excellent electrical insulation

10. Widely used in various mechanical and hydraulic fields.

Application of LT type shaft coupling with elastic sleeve and pin

1.  LT type shaft coupling with elastic sleeve and pin are widely used in various mechanical and hydraulic fields, can adapt positive and negative changeful start frequent occasions

2.Printing machinery / Packing machinery / Wood-working machinery etc large-scale mechanical equipment
