PMX5 CNC Machine Tool Lathe Machining Center Cylindrical Polishing Grinder

PMX5 CNC Cylindrical Polishing Grinder1.Our PMX5 CNC cylindrical polishing grinder is designedand produced according to Germany grinding conceptand technology . It is used for fine polishing of highly precise products such as shaft parts2.Using our intelligent grinding software , it takes a veryshor......

Send Inquiry

Product Description

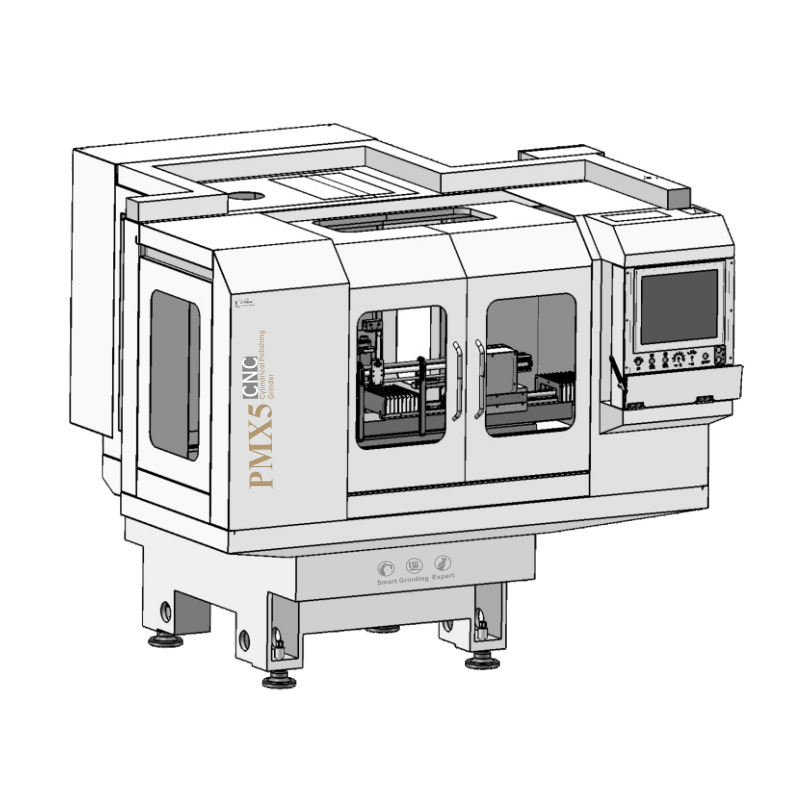

PMX5 CNC Cylindrical Polishing Grinder

1.Our PMX5 CNC cylindrical polishing grinder is designedand produced according to Germany grinding conceptand technology . It is used for fine polishing of highly precise products such as shaft parts

2.Using our intelligent grinding software , it takes a veryshort time to finish the polishing programing for a varietyof standard cylinders

3.The operator can generate an efficient grindingprogram very quickly , only has to modify few parameterswith help of our programming guild

Polishing Grinding unit			Controller	BP/SYNTEC/FANUC/SIEMENS

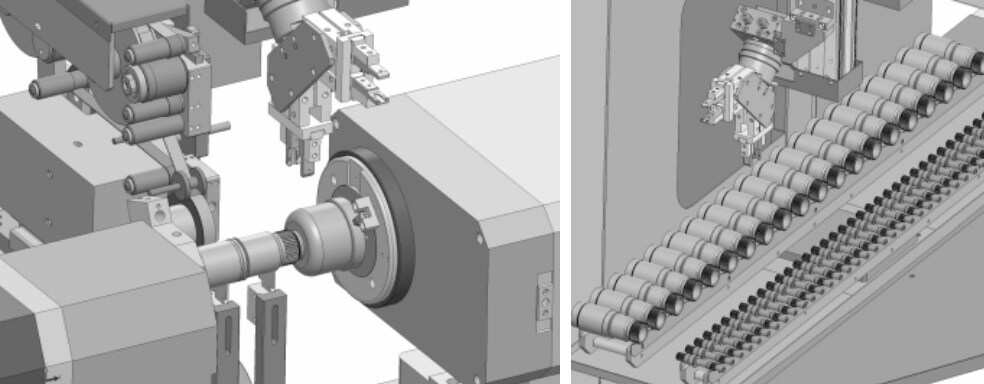

Servo controller	feedbelt	Robot loader
Servo Controlled vibration Frequency	0-1500rpm	Shank diameter of work piece	3-45mm
Movement Distance	30mm	Max length of work piece	150mm
Belt Breadth	12/25/32mm	Connected Loading
Travel		380v/50HZ	ca 6 kw
X axis	250mm	Size
Y axis	120mm	Length * Width	2100*200mm
Rotary axis (A Axis)		Height	2000mm
Top tip	Rotary more 4#	Machine Weight
Standard Center Height	180mm	Total Weight	ca 3500kg
Max Rotation Speed	1500rpm
Tool Range(Grindable Tool depends on its Type and Machining)
Diamer	3-60mm

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

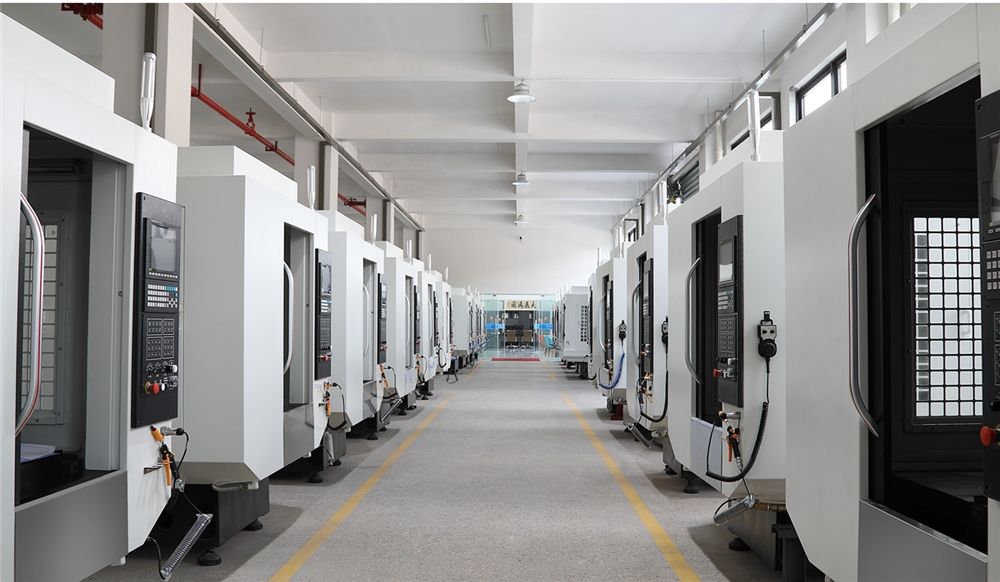

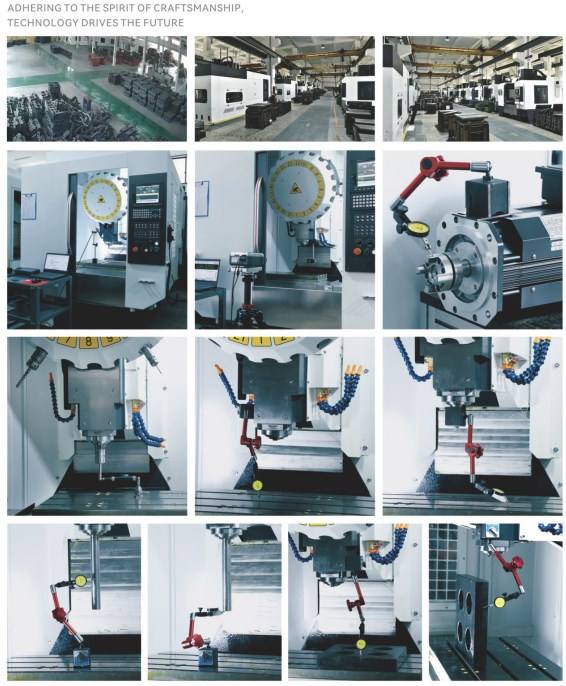

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
