Robotic Arm Truss Joint Manipulator for Closed Large Tonnage Stamping Connection

Truss Joint manipulatorIndependent translation beam design, can be suspended, can be seated, applied to closed large-tonnage inline stampingTruss SeriesProduct features-Suitable for multi-station small side opening punch press line stamping automatic production line.-Adopt servo control, high precis......

Send Inquiry

Product Description

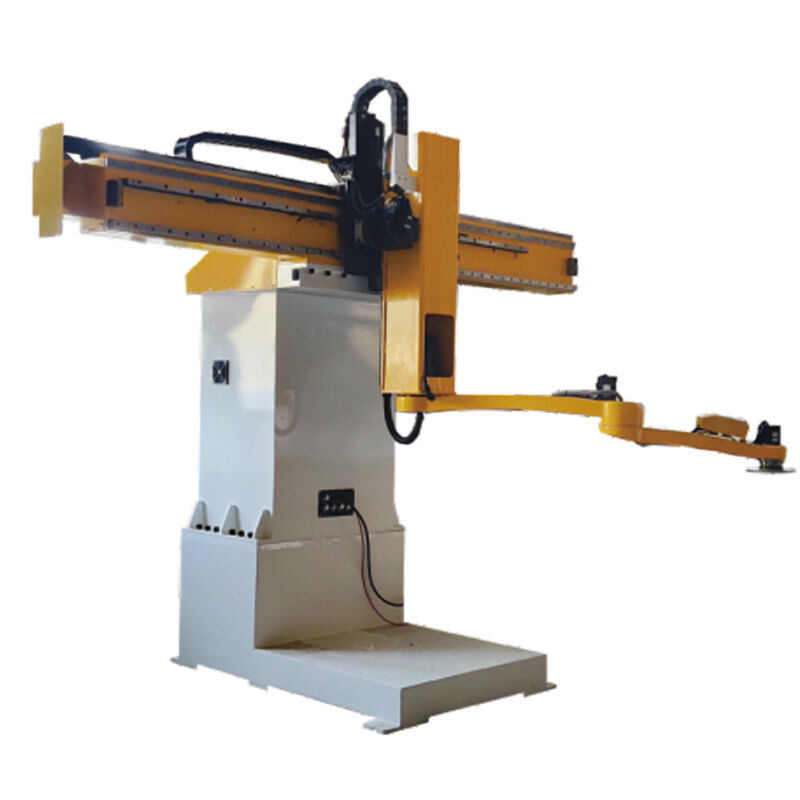

Truss Joint manipulator

Independent translation beam design, can be suspended, can be seated, applied to closed large-tonnage inline stamping

Truss Series

Product features

-Suitable for multi-station small side opening punch press line stamping automatic production line. -Adopt servo control, high precision, strong load-bearing capacity; adopt optical fiber communication, fast signal transmission, strong anti-interference. -Adopt PLC control to improve product compatibility and flexibility. -Each robot arm is equipped with a sensor detection device, which automatically alarms when there is no material. Equipped with a human-machine interface, easy to operate and monitor production status

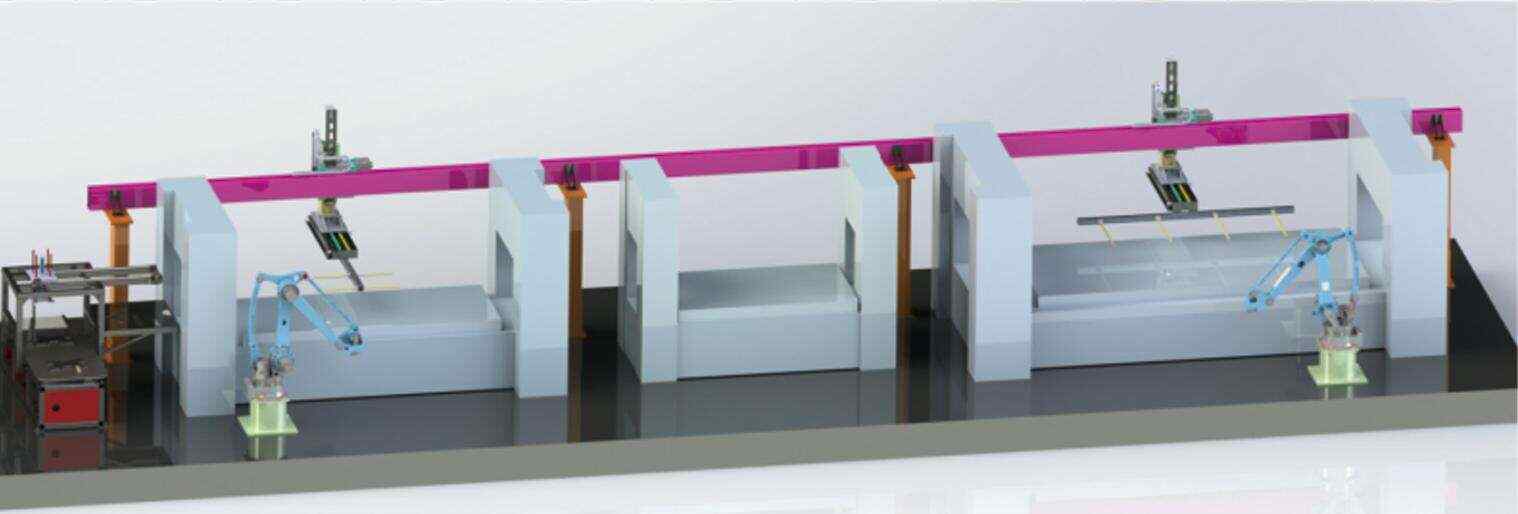

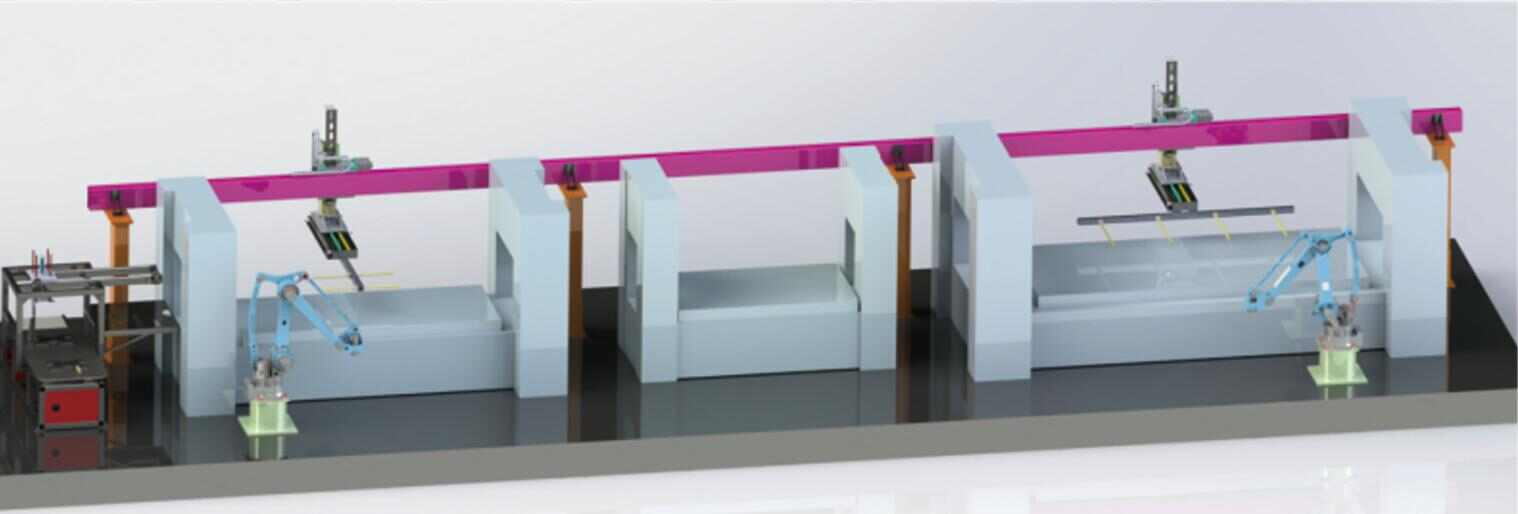

Suspension design, continuous integrated beam, overall stable operation, applicable to multi-machine connection, sheet metal parts, back panel stamping and handling

Model			Truss Manipulator
Model				QE-HJ-2000-1500-300	QE-HJ-3000-1500-300	QE-HJ-H/J-4000-1500-300	QE-HJ-5000-1500-300
Moving Storke（mm）	X-axes	2000	3000	4000	5000
		Y-axes	0-1500
		Z-axes	0-300
Max（Min）SPM（pcs/min）	14（8）
Positioning Precision（mm）	+—0.2
Installed Power（Kw）			10(1 driving unit)

Model			Truss joint manipulator
Model				OE-HJ-D-X-1300-450
Moving Storke（mm）	X-axes	Customized
		Y-axes
		Z-axes	450
Max（Min）SPM（pcs/min）			8（6）
Positioning Precision（mm）			+-0.1
Installed Power（Kw）			8

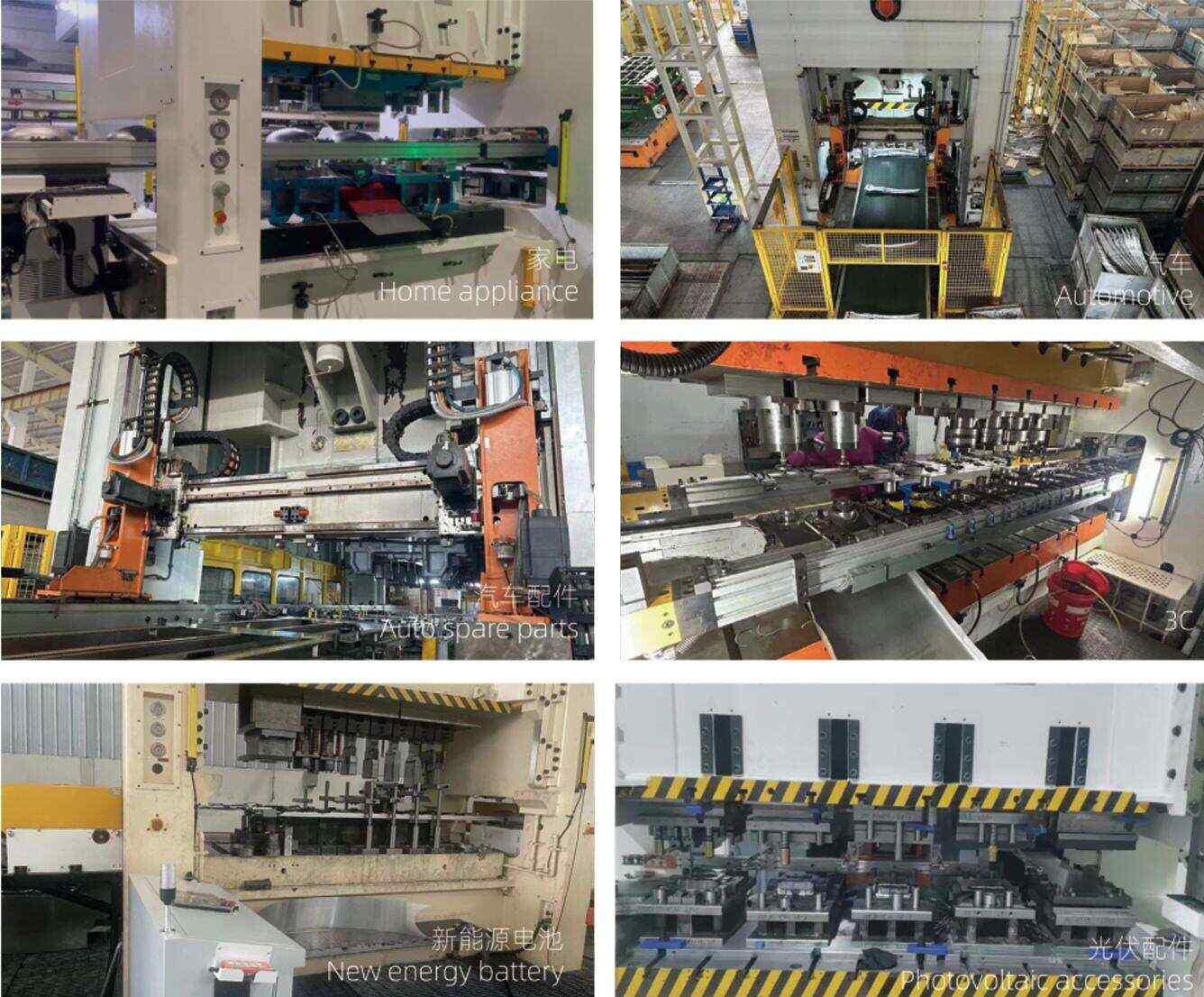

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.
