SMR Gear Reducer Shaft Mounted Gearbox are metric in design throughout and have power ratings to AGMA standard.

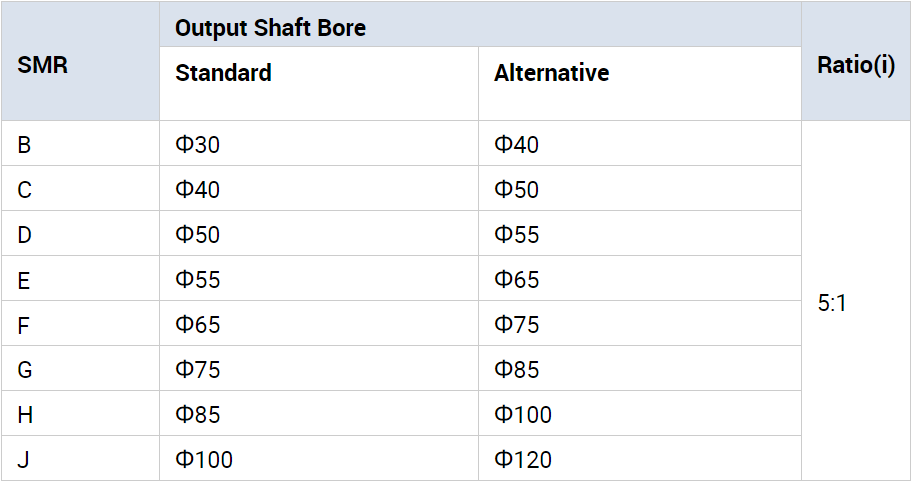

1. Output Hub
Standard or alternative hubs with metric bores are available to suit international standard shaft diameters.
2. Precision High Quality Gearing Computer designed helical gears, strong alloy materials for high load capacity, case carburized for long life, ground profile(some intermediate pinions are shaved) crown tooth profile, in conformance with ISO 1328-1997, 98% efficiency for per stage, smooth quiet operation with several teeth in mesh.
3. Maximum Capacity Housing Design Close grain cast iron construction, excellent vibration dampening & shock resistance features, precision bored and dwelled to ensure accurate in-line assembly.
4. Strong Alloy Steel Shafts Strong Alloy Steel, hardened, ground on journals, gear seatings and extensions, for maximum load and maximum torsional loads.generous size shaft keys for shock loading and conform to ISO standards.
6. Backstops Alternative parts, anti-run back device, are available on all 13:1 and 20:1 ratio units and do not recommend for 5:1 Units.
7. Bearings and Oilseals Bearings are adequately proportioned and cConform to ISO dimension plan, readily available world-wide. oilseals are double lipped garter spring type, ensuring effective oil sealing.
8. Rubberised End Caps Self sealing intermediate cover plates, to standard ISO housing dimensions.

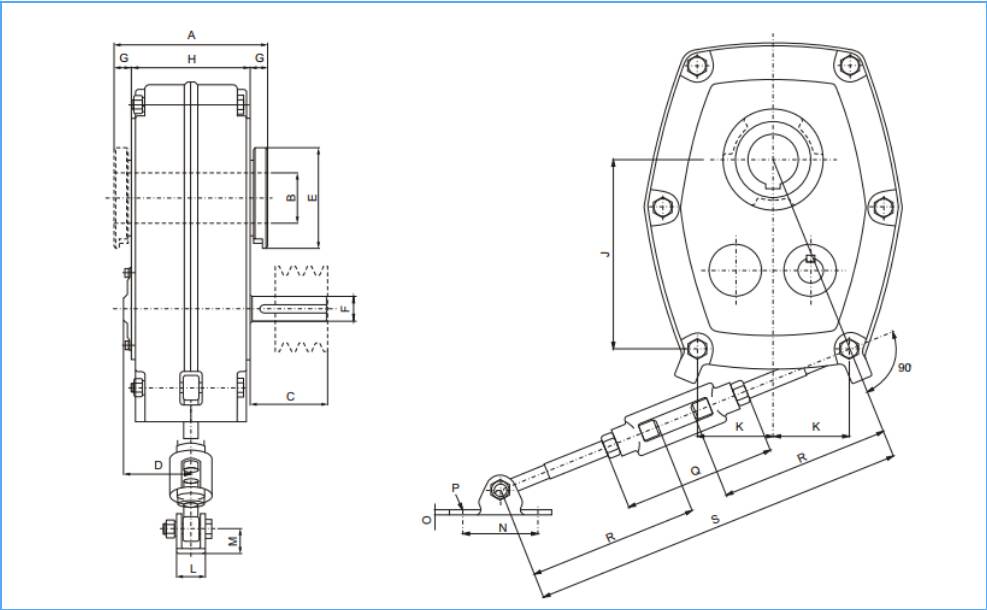

9. Torque Arm Assembly For easy adjustment of the belt.
