SMR Type Shaft Mounted Smr Gearbox

Send Inquiry

Product Description

* Key benefits
--- Cost effective solution
--- High Reliability
--- Robustness
--- Very Compact design
--- Prevent the movement in the wrong way
--- Highly customizable product
* Main options
--- Fluor Elastomer Seals
--- Backstop
--- Torque range
--- 150 ... 16,000 Nm

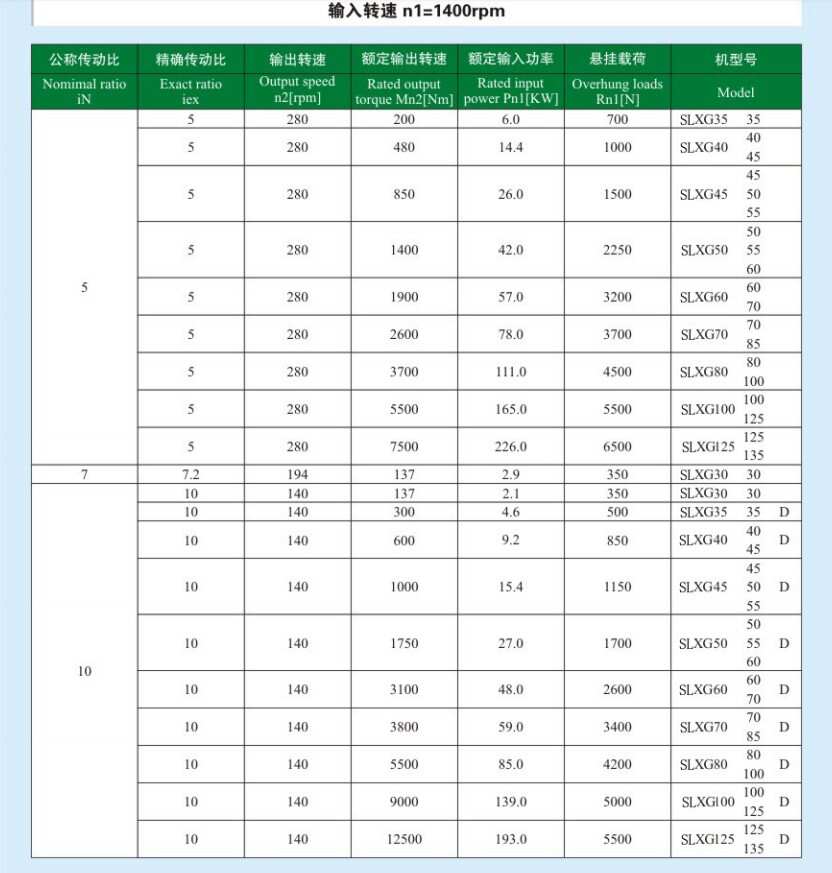

* Gear ratios
--- 5 ... 33.2
* Transmissible Mechanical Power
--- Up to 226 kW
* Motors
--- Input with solid shaft
--- Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
* Motor options
--- Thermistors and thermostat sensors
--- Independent forced cooling
--- Incremental, sin/cos absolute single/multi-turn encoders
--- Tropicalization
--- Anti-condensation heaters
* Torque Range
--- TA 30 = 150 Nm
--- TA 35 = 400 Nm
--- TA 40 = 900 Nm
--- TA 45 = 1360 Nm
--- TA 50 = 2100 Nm
--- TA 60 = 3500 Nm
--- TA 70 = 4900 Nm
--- TA 80 = 6600 Nm
--- TA 100 = 10500 Nm
--- TA 125 = 16000 Nm
