Stainless Steel Cast Iron Plastic Pitch Taper Lock Bushing Idler Gear Wheel Excavator Weld Hoist Conveyor Roller Chain Sprocket

Business typeManufacturer & ExporterMain export marketEurope, North and South America, Southeast Asia, Oceania, Middle East, AfricaMaterialAlloy Steel, Carbon Steel, Stainless Steel,Aluminum, Copper, BrassManufacturing methodForged and then machined, hobbed, if need can also weldHeat treatmentHa......

Send Inquiry

Product Description

Business type	Manufacturer & Exporter
Main export market	Europe, North and South America, Southeast Asia, Oceania, Middle East, Africa
Material	Alloy Steel, Carbon Steel, Stainless Steel,Aluminum, Copper, Brass
Manufacturing method	Forged and then machined, hobbed, if need can also weld
Heat treatment	Hardening and Tempering, High Frequency Quenching, Carburizing Quenching
Surface treatment	Oxide black, Galvanized, Nickel plated, Chrome plated, Sandblasting, Painted and so on
Model	ANSI: 25/35/41/40/50/60/80/100/120/140/160/180/200/240
		DIN/ISO:04C/06C/085/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A
		DIN/ISO:04B/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/36B/40B/48B
Process	Forging, Hobbing, Precision machining
Teeth	9T-100T

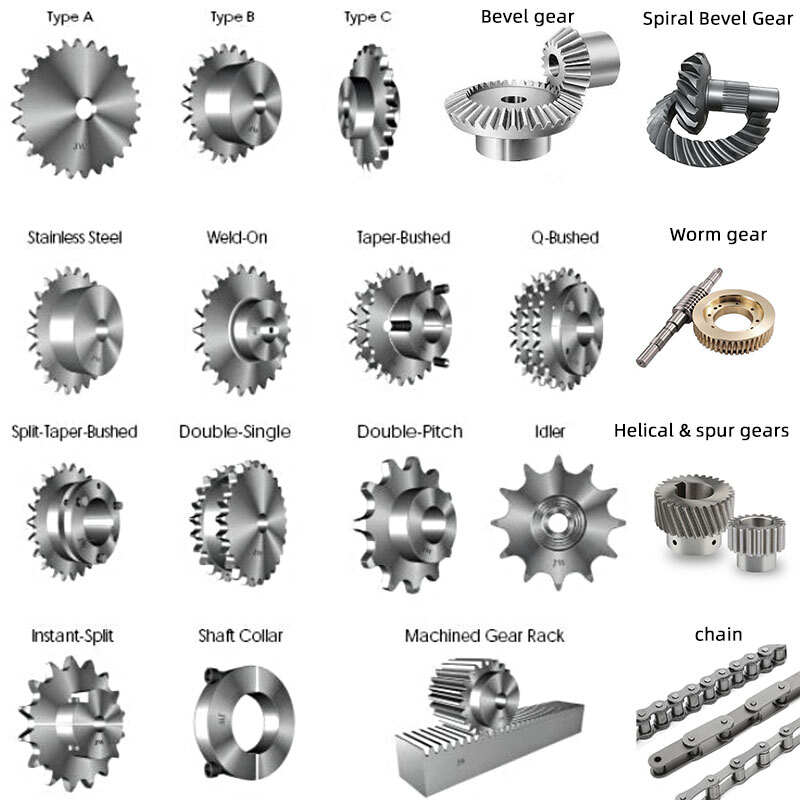

Type	Type A sprockets :Plate (without Hub)
		Type B sprockets:One side with hub
		Type C sprockets: Double side with hub
		Finished bore sprockets:With the inner hole ,keyway and screw

For more models, please contact us！

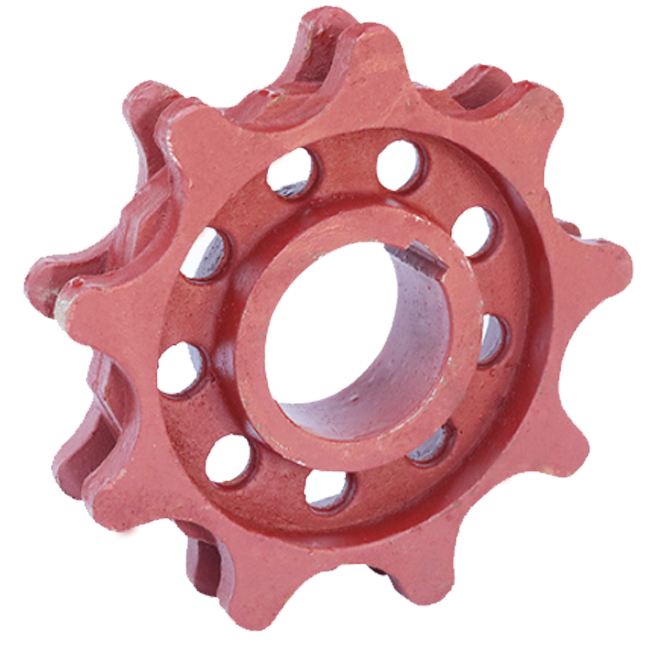

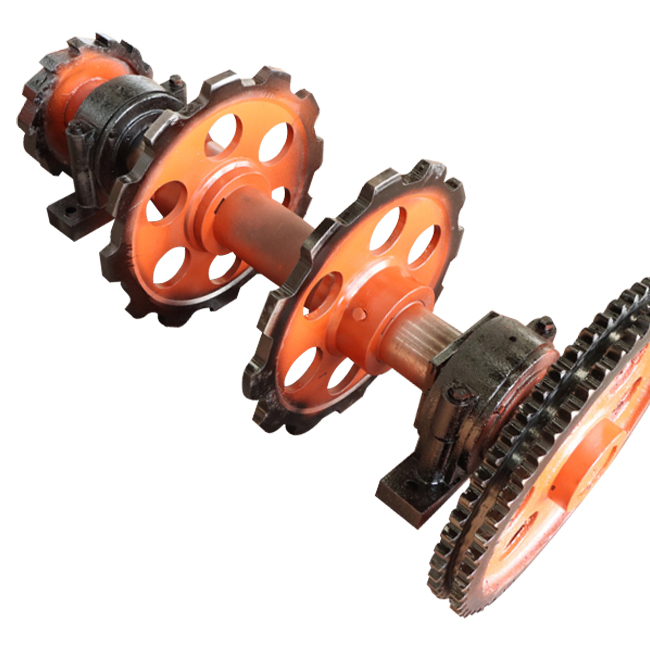

Cast Sprockets

The general manufacturing method of a large chain wheel is to cast the chain wheel body with a casting process. Its material is
zg310-570. After casting, the chain wheel body shall be subject to annealing heat treatment, normalizing and tempering heat
treatment, and processing screw holes. After that, the bolt shall be installed with the wheel body of the bucket wheel machine
mechanism, and the chain wheel teeth shall be processed on the large gear milling machine, and finally, the tooth surface shall be quenched.
