AI Air-cooling Energy Storage Outdoor ESS Cabinet for Photovoltaic Wind Power Generation Microgrid System

AI Air-cooling Outdoor ESS CabinetAI Air-cooling Outdoor ESS Cabinet can be used in industrial and commercial energy storage, photovoltaic consumption, wind energy storage, power generation side energy storage, microgrid system, optical storage and charging system and other scenarios. Adoptair-coole......

Send Inquiry

Product Description

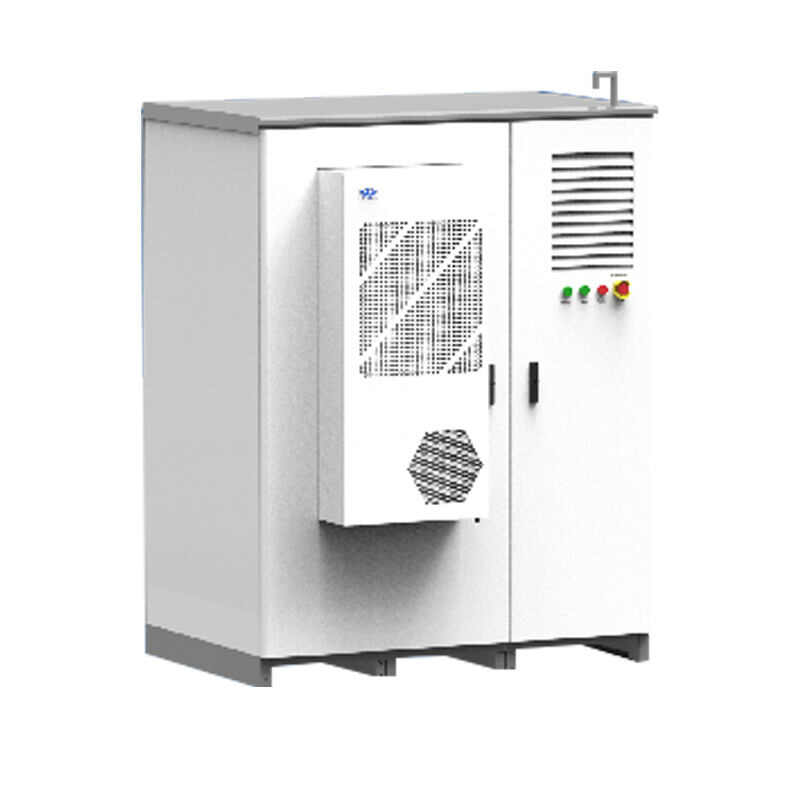

AI Air-cooling Outdoor ESS Cabinet

AI Air-cooling Outdoor ESS Cabinet can be used in industrial and commercial energy storage, photovoltaic consumption, wind energy storage, power generation side energy storage, microgrid system, optical storage and charging system and other scenarios. Adopt
air-cooled heat dissipation technology, effectively reduce device temperature, improve operating efficiency, and extend battery
life. It is an ideal choice for the future development of smart grid and green energy, providing users with efficient and reliable
power storage and management solutions.

Peak-Valley arbitrage +PV power generation +Short-Term Power Regulation +Emergency backup power

DC Data
Battery type	LFP280Ah	Battery cell capacity	280Ah
Rated voltage	DC768V	Rated energy capacity	215.04kWh
Voltage range	DC600~DC876V	Rated current	151A
AC Data
Rated power	1200kW	Rated frequency	50Hz/60Hz
Voltage range	380/400Vac	THD	≤3%（full load）
AC output	3P+N+PE	Power Factor	-1~1
PV Data
Max. power input	50kW	Max.input current	100A
Max. DC input voltage	DC1000V	Nuber of MPPT	1（Multiple optional channels）
MPPT voltage range	DC300~1000V	Max. efficiency	99%
System Data
Weight	2.5t	Relative humidity	0%-95%，No condensation
Size（W×D×H）	1700×2200×1125mm（Excluding air conditioning）	Altitude	≤5000m（＞3000m Need to reduce the amount）
Max. efficiency	86%	Fire extinguishing system	Possess
Configuration	PCS、MPPT（Optional）、STS（Optional）	Protection grade	IP54
Max. charge/discharge rate	0.5C	Cycle life	≥6000@25℃ 0.5C/0.5C,90%DOD,70%EOL
Cooling method	Air-cooling	Communication interfaces	RS485、Ethernet、4G
Operating temp. range	-20℃~+55℃	Communication protocol	ModBus TCP/RTU

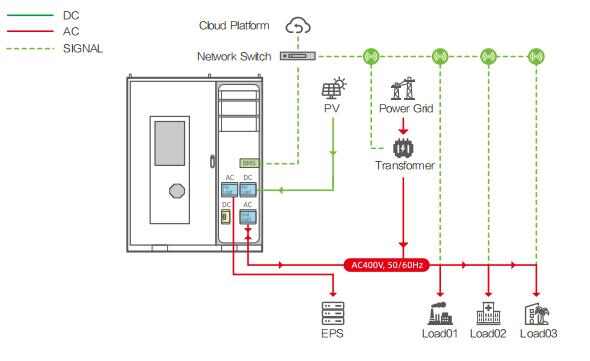

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

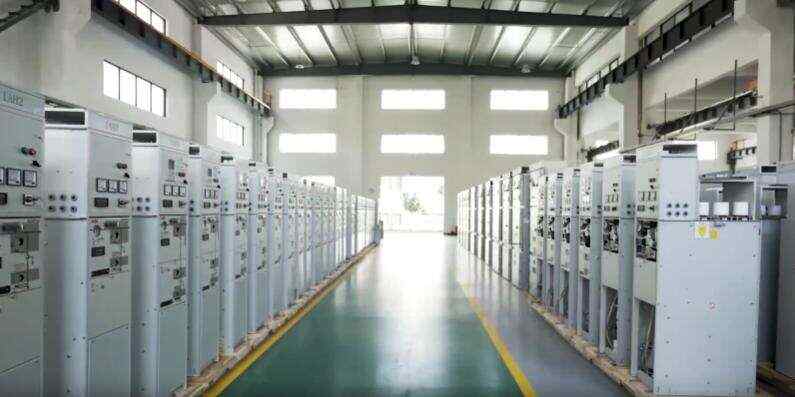

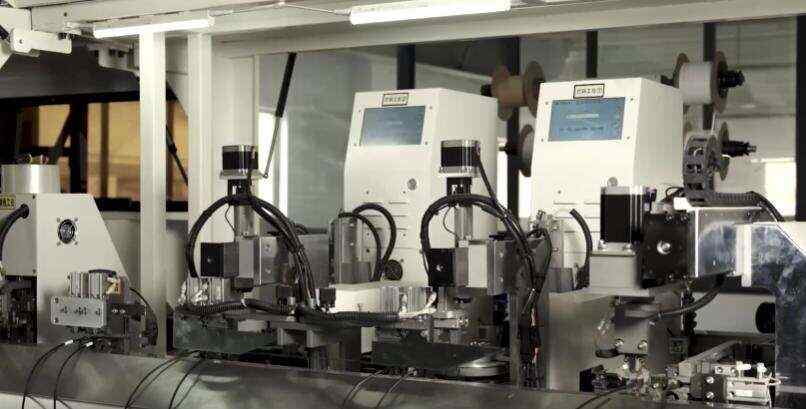

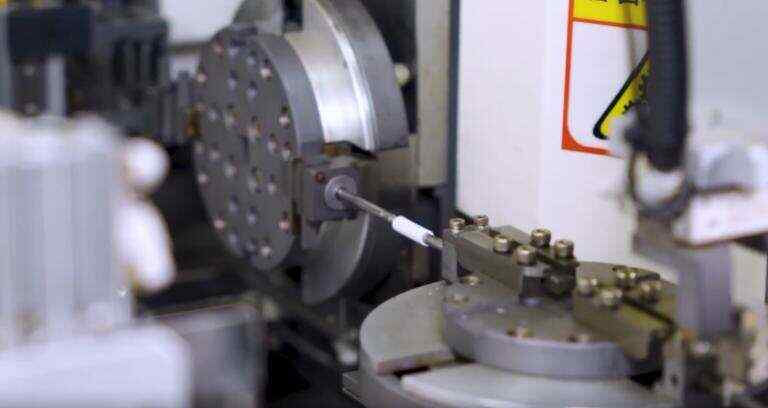

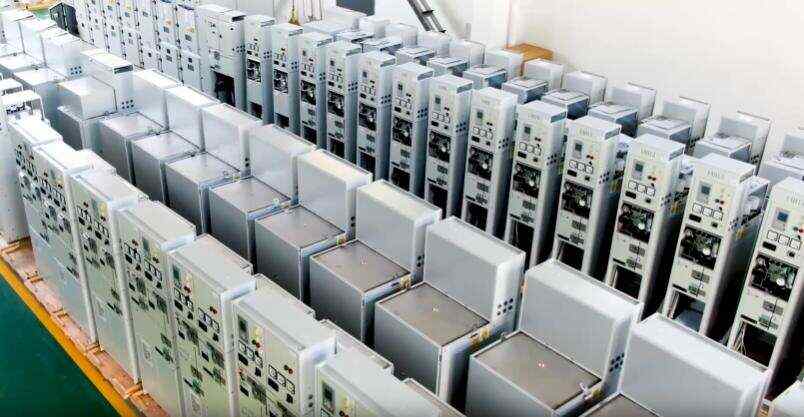

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

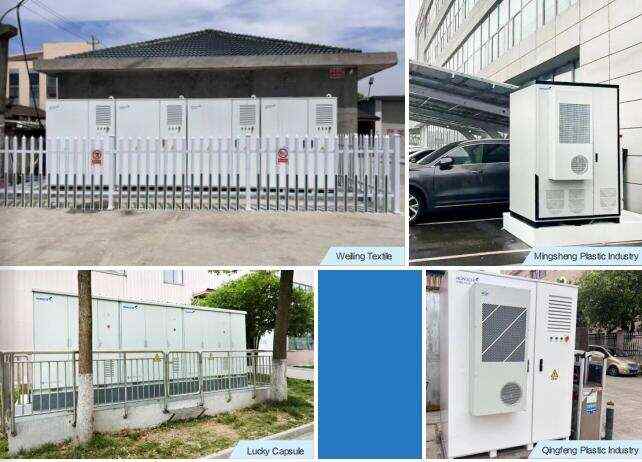

Performance cases

Hot Tags: Ai Air-cooling Energy Storage Outdoor Ess Cabinet For Photovoltaic Wind Power Generation Microgrid System - Buy Ai Air-cooling Energy Storage Outdoor Ess Cabinet For Photovoltaic Wind Power Generation Microgrid System Product on Raydafon
