Large Size Three Dimension Robotic Arm Manipulator for 630 Ton Punching Machine

3 Dimension manipulator（Large size）Applicable to punching machines above 630 tons, specially designed for large-table punching machines, efficient and stableoperation, used in shell stretching, automobile, sheet metal parts marketProduct features-Suitable for multi-station handling, feeding and stam......

Send Inquiry

Product Description

3 Dimension manipulator（Large size）

Applicable to punching machines above 630 tons, specially designed for large-table punching machines, efficient and stable
operation, used in shell stretching, automobile, sheet metal parts market

Product features

-Suitable for multi-station handling, feeding and stamping automated production lines. -Adopting servo control, high precision and strong load-bearing capacity. -Adopting PLC control to improve product compatibility and flexibility. -Each robot arm is equipped with a sensor detection device, which automatically alarms when there is a shortage of material. -Equipped with a human-machine interface, it is easy to operate and monitor the production status.

Model			3 Dimension Manipulator （Large size）
Model				QE-3D-600-800-300	QE-3D-800-800-300	QE-3D-1000-800-300	QE-3D-1200-800-300
Moving Storke（mm）	X-axes	600	800	1000	1200
		Y-axes	800
		Z-axes	300
Max（Min）SPM（pcs/min）	25（15）
Positioning Precision（mm）	+—0.2
Installed Power（Kw）	45(12 driving unit)

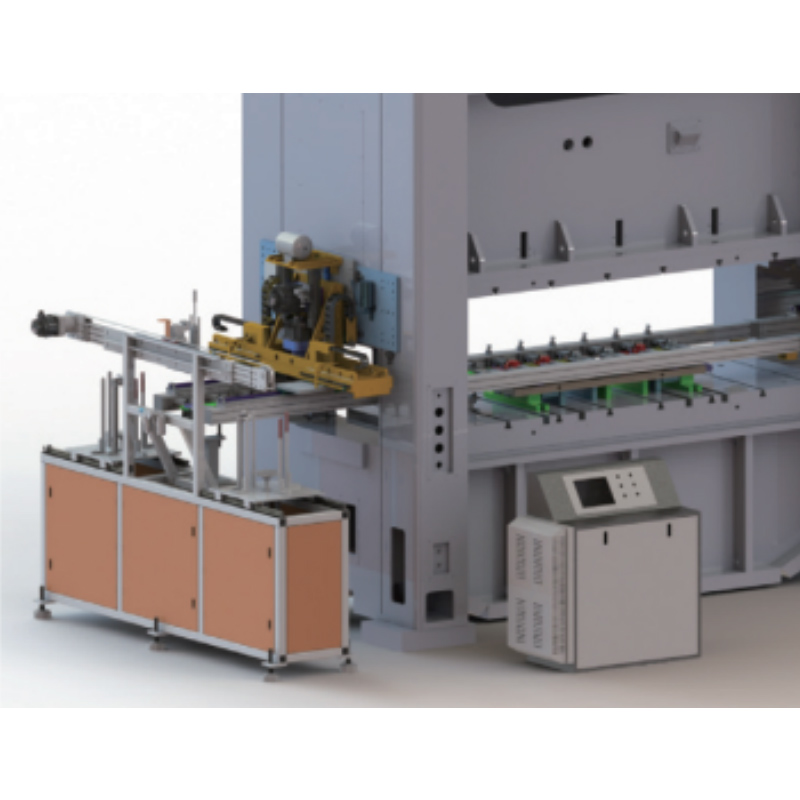

3 Dimension Small Size manipulator

Applicable to punch presses below 630 tons, the lifting height and clamping range can be adjusted by the arm, and are used in special-shaped parts forming, large parts pulling, and automotive market

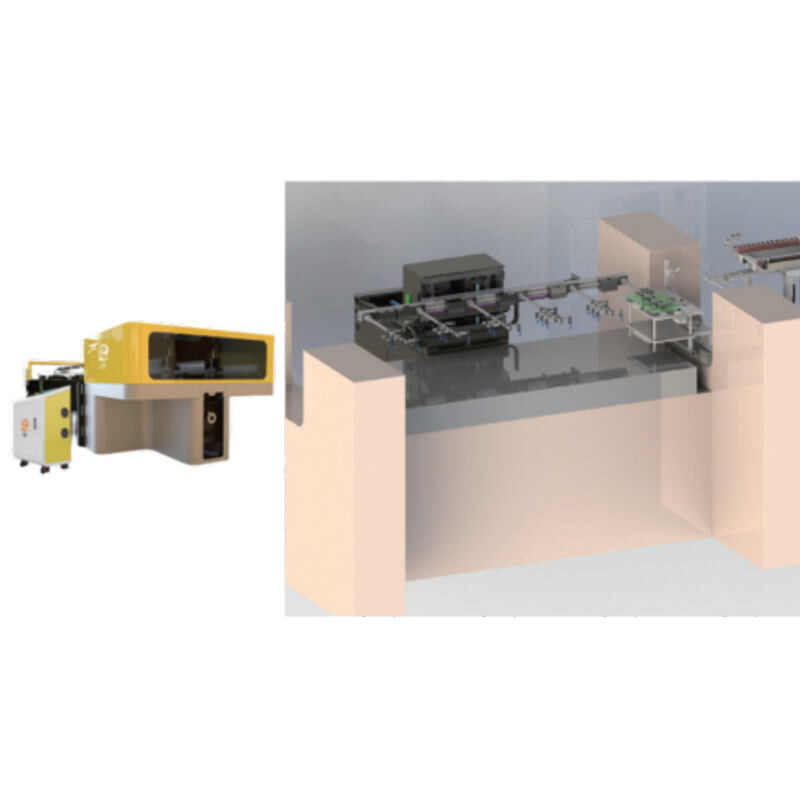

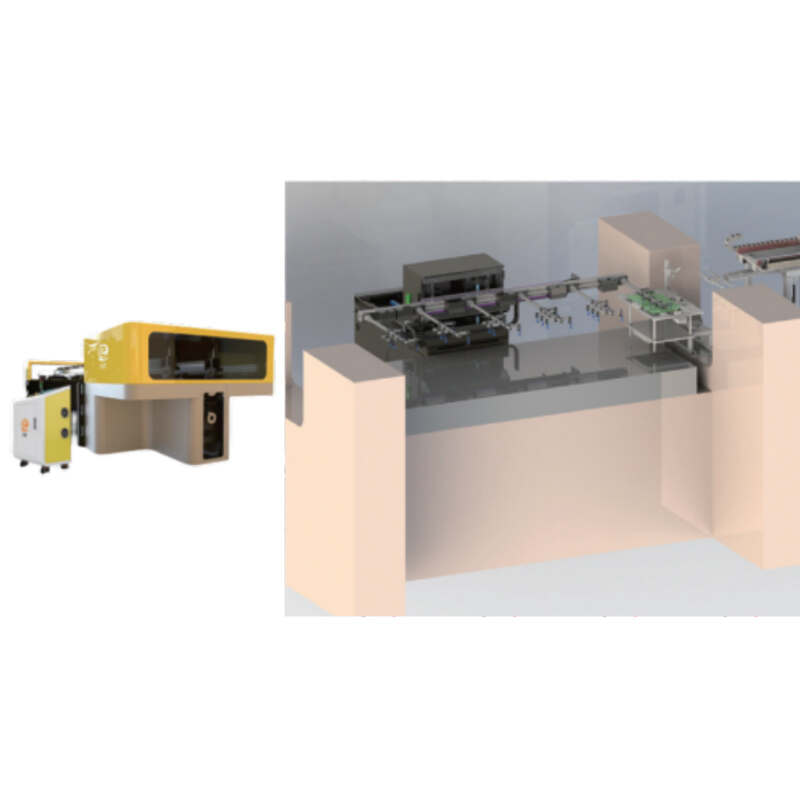

Solo Multi Station Manipulator

Applicable to 63-400 ton single and double point punch presses, specially designed for handling stamping by multiple engineering dies, and used in the stamping industry of small hardware, auto parts, and home appliance parts

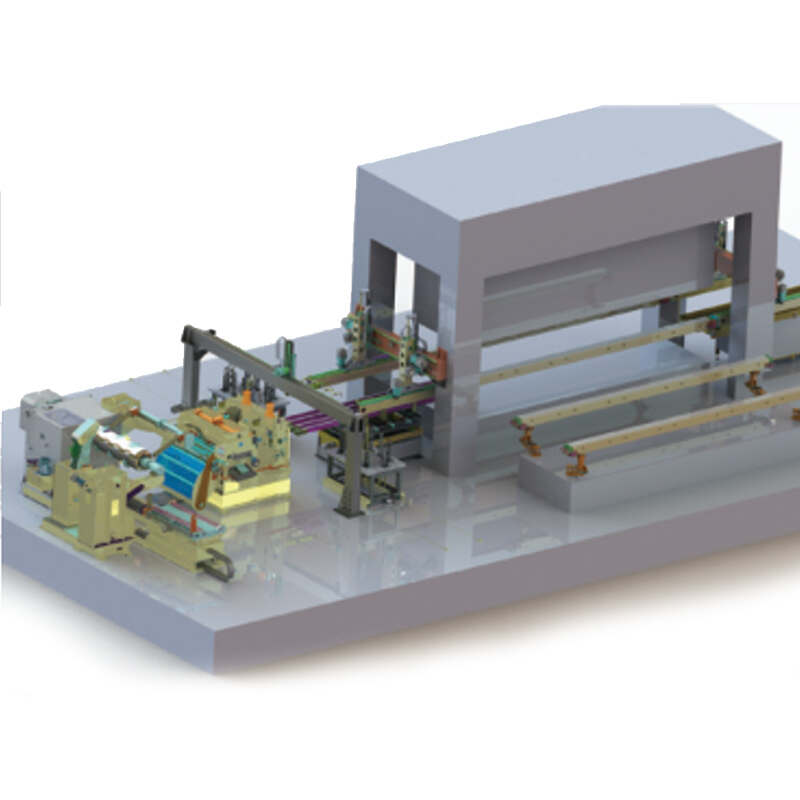

3 Dimension Large Size Manipulator

Applicable to punching machines above 630 tons, specially designed for large-table punching machines, efficient and stable operation, used in shell stretching, automobile, sheet metal parts market

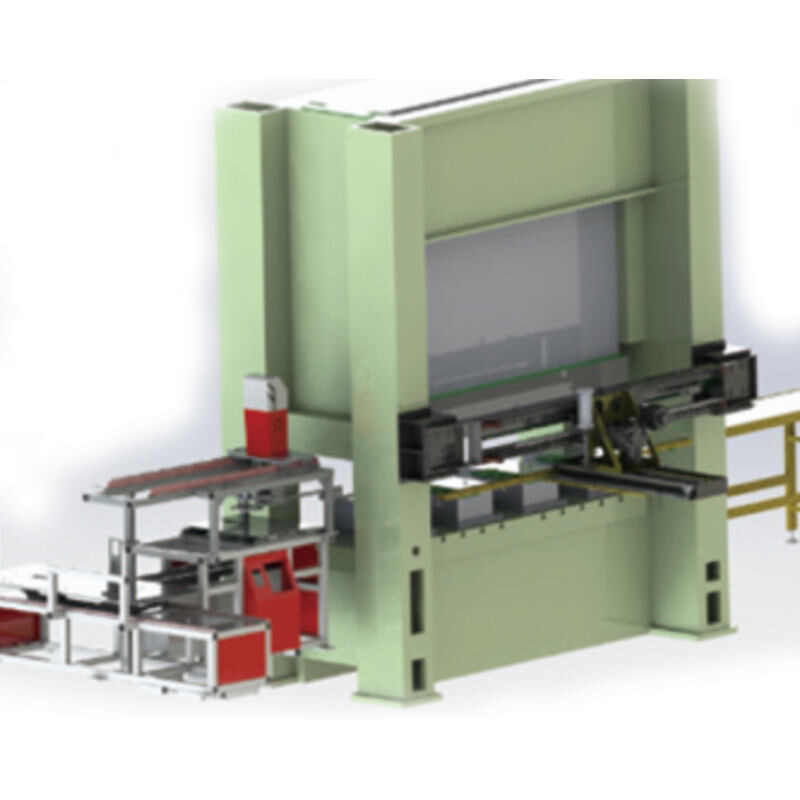

3 Dimension Wall Mounted Manipulator

Applicable to 200-1600 ton punch presses, specially designed for small openings on the press side, used in the automotive, home appliances, and sheet metal markets

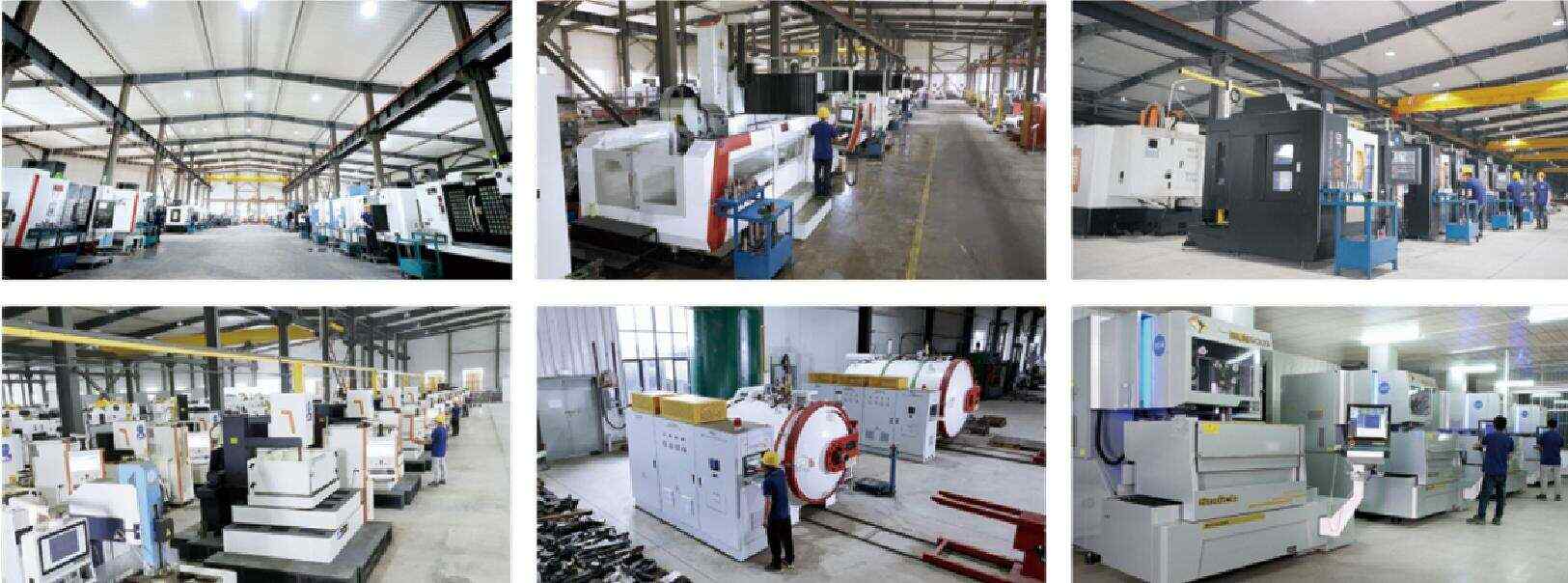

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.
