Product Description

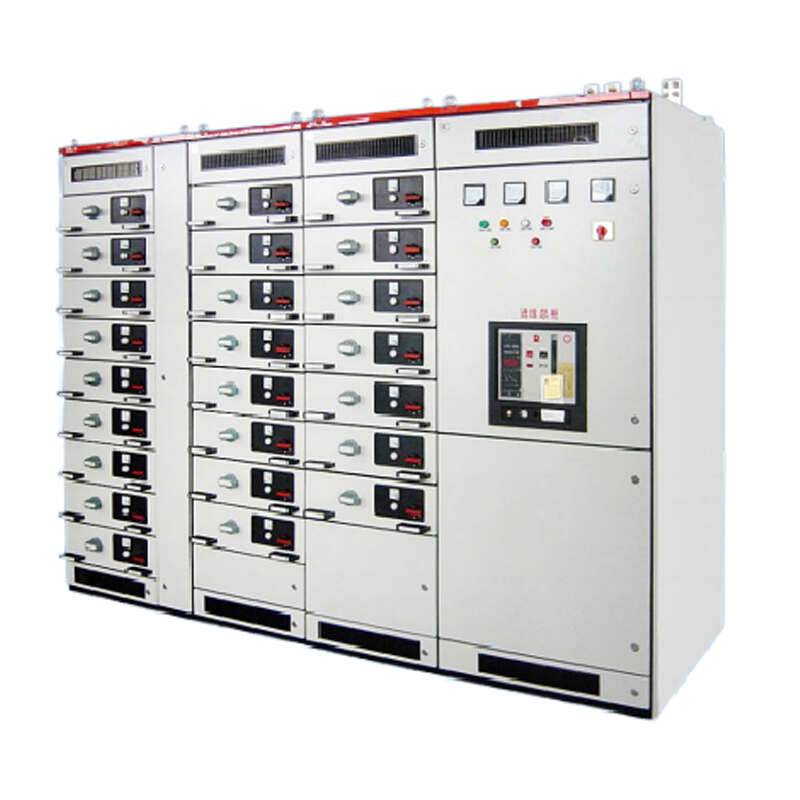

MNS AC Low-voltage Switchgear

MNS low-voltage withdrawable switchgear is suitable for power generation and supply systems with AC 50Hz and rated working voltage of 380V and below, such as power generation, transmission and distribution, petrochemical departments, factories and mining enterprises, building power supply and other industries.

It is used for energy distribution, control, and reactive power compensation, especially for large power plants, petrochemical and other places with intensive automation, requiring dialogue interfaces and communication with computers, and can fully meet their needs.

Project	Unit	Parameter
Electrical performance
Rated working voltage	V	380
Maximum working current of the main busbar	A	4500（lP30）
Short time (1s) withstand current of the main busbar	KA	50
Maximum operating current of distribution busbar (vertical busbar)	A	1000
Short time peak current of distribution busbar (vertical busbar)		105
Standard (maximum)	KA	50
Enhanced (maximum)	KA	105
Protection level	Complies with IEC529 and DIK140050 standards P30 for greater than Φ 2.5mm solid protection P40 for greater than Φ 1.0mm solid protection P54 provides protection against dust and splashes from any direction		Complies with IEC529 and DIK140050 standards P30 for greater than Φ 2.5mm solid protection P40 for greater than Φ 1.0mm solid protection P54 provides protection against dust and splashes from any direction
Note: When ordering P54 protection level, it should be negotiated with the manufacturer

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

Performance cases
