Good Quality Belt Conveyor Systems Parts Antistatic and Aging Resistant V Type Idler for Sale

Key FeaturesV-type rollers are distinguished by their simple yet effective angled roller arrangement:Two angled rollers: The core of this design consists of two rollers angled upward toward each other, forming a V-shape. Common V-angles include 5°, 10°, or 15°, depending on the specif......

Send Inquiry

Product Description

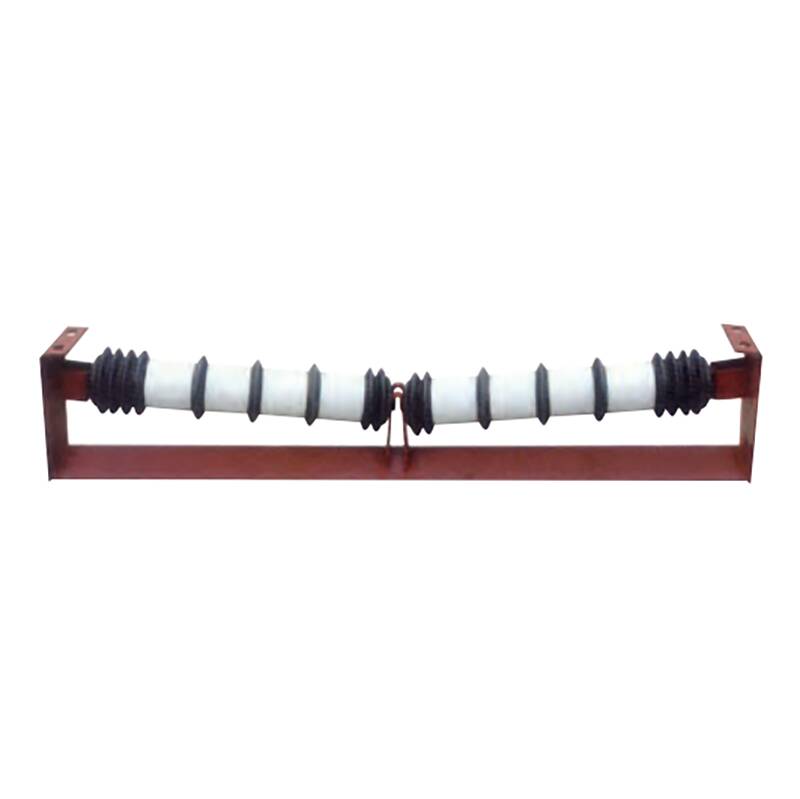

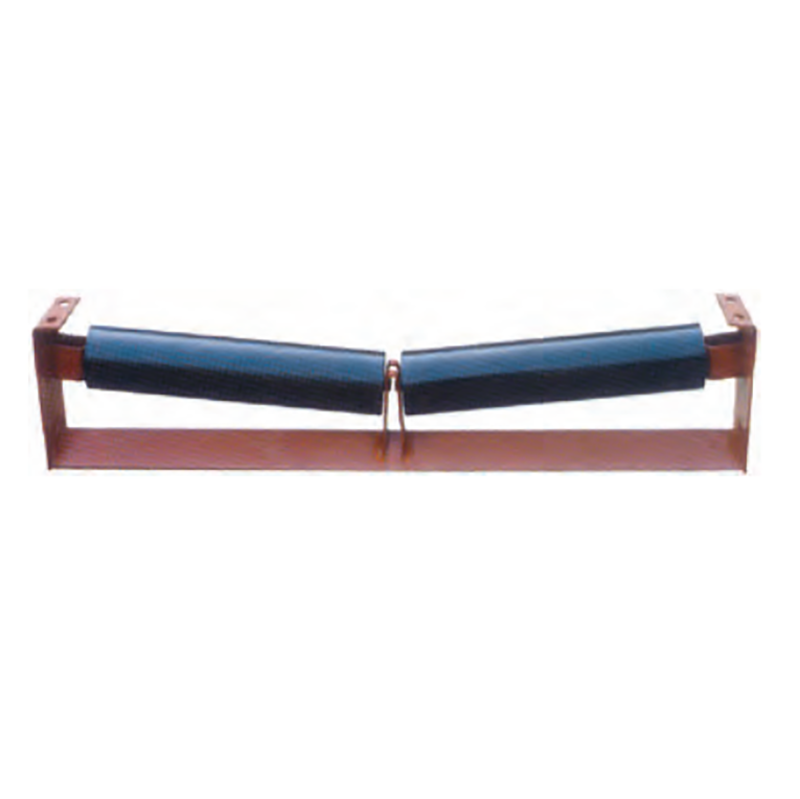

Key Features V-type rollers are distinguished by their simple yet effective angled roller arrangement: Two angled rollers: The core of this design consists of two rollers angled upward toward each other, forming a V-shape. Common V-angles include 5°, 10°, or 15°, depending on the specific conveyor design and belt width. Center Support: The two angled rollers typically meet at a center point and are usually supported by a bracket that is fixed to the conveyor frame. Rugged Construction: Like all conveyor rollers, V-type rollers are made of durable materials such as steel and feature a sturdy shaft and sealed bearings to ensure smooth rotation and protection from dust, dirt, and moisture found in industrial environments.

Performance Benefits

Improved belt tracking: This is the primary benefit. The V-roller construction gives the return belt a natural self-centering effect. If the belt begins to drift sideways, the angled rollers apply a corrective force to gently guide it back to the center of the conveyor frame. This helps prevent serious tracking issues.

Reduces belt edge damage and wear: By keeping the belt properly centered, V-rollers prevent the belt edge from rubbing against the conveyor structure or other components. This significantly reduces premature wear, abrasion and damage to the belt, extending its life.

Enhanced system stability: Good belt tracking makes the conveying system more stable and reliable. V-rollers help improve overall system stability by minimizing belt tracking and its potential related problems.

Efficient and simple: Compared to more complex self-aligning (aligning) rollers with pivot mechanisms, fixed V-rollers are simpler in design and are generally more cost-effective, while still providing good tracking aids for a variety of applications.

Reduced Downtime and Maintenance: By preventing belt damage due to mistracking, V-Rollers help reduce unplanned downtime due to repairs and lower overall maintenance costs.

Applications V-Rollers are used on the return side of conveyor belt systems in a wide range of industries, especially where improved belt tracking is needed without complex pivot mechanisms, or where smooth return belt operation is required: Mining and Quarrying: Commonly seen in systems transporting bulk materials such as coal, ore, gravel and sand, where maintaining belt alignment is critical for continuous operation.

Aggregate and Cement Plants: Ensure smooth and centered return of belts after conveying material. Power Plants: Used in coal handling systems for reliable tracking of return belts.

General Industrial Conveyors: Used in manufacturing, logistics and processing plants to handle a variety of materials on the return side.

Long Distance Conveyors: Help maintain alignment during long conveying distances.

Conveyors with steady material flow: Conveyors are most efficient when the return belt is relatively clean and the return belt material does not cause significant disruption to the V-conveyor’s direct belt contact.
