Model 8 Series Planetary Gearbox Replacement of AUBURN (Shaft Output and Spindle Output Drives)

Send Inquiry

Product Description

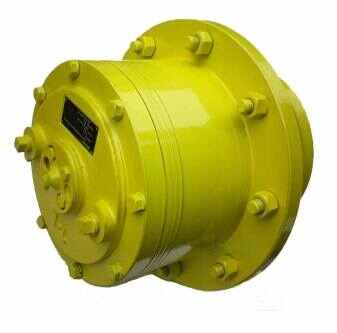

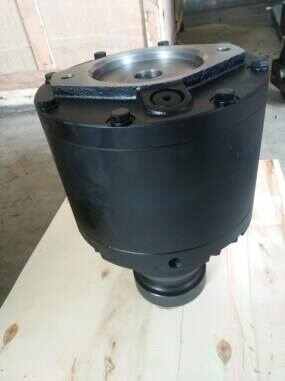

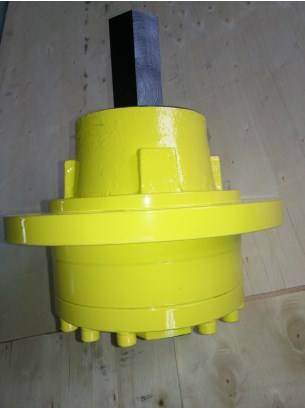

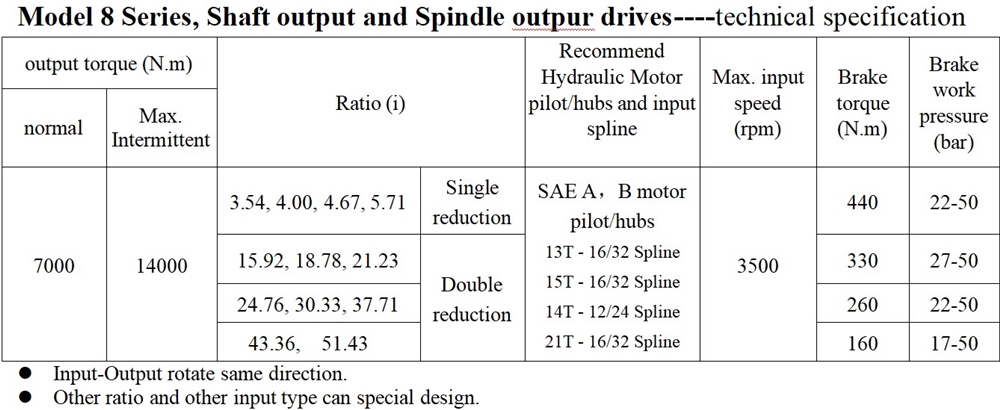

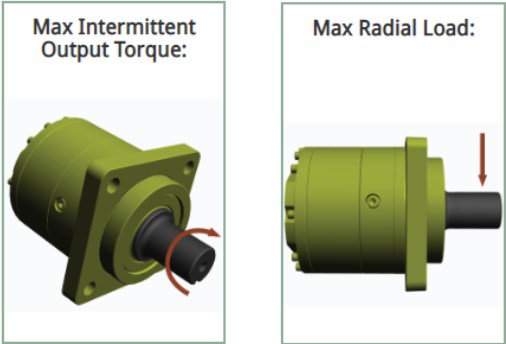

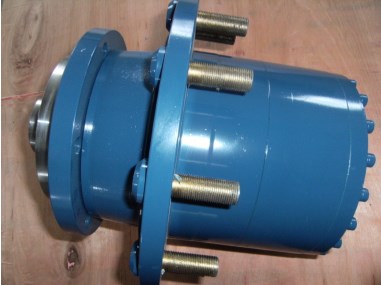

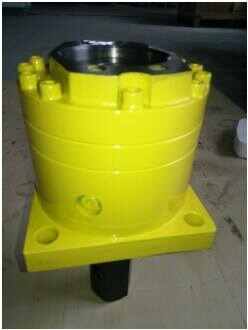

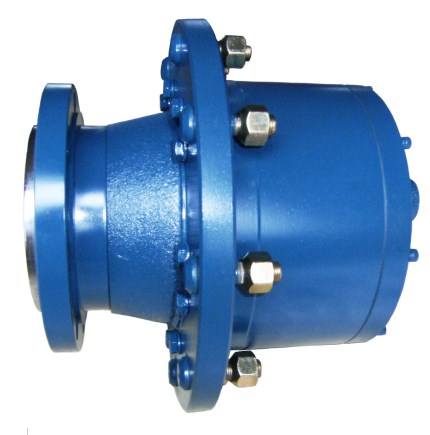

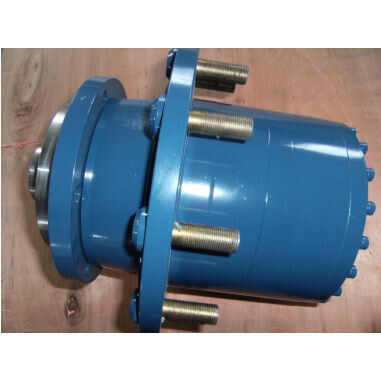

Model 8 series planetary gearbox The Model 8 series planetary gearbox is a multifunctional and high-performance gearbox designed for various industrial and commercial applications that require high torque output, precise speed control, and efficient power transmission. The gearbox adopts a high-strength and precision machined planetary gear system, which can provide high torque output and precise speed control, making it very suitable for applications that require high power density and precise control. The gearbox is designed to handle high radial and axial loads and is suitable for demanding applications that require high performance and durability.

The model 8 series planetary gearbox has various transmission ratios and can be customized to meet specific torque and speed requirements. It is also designed to be easily integrated with multiple motors, making it a popular choice for applications that require high power density and precise control. The design of the gearbox is easy to maintain and repair. It adopts a modular design that facilitates disassembly and reassembly, thereby reducing downtime and maintenance costs. It also uses high-quality materials and components, which are designed to withstand heavy usage and harsh operating conditions. Overall, the Model 8 series planetary gearbox is a reliable and efficient solution suitable for various industrial and commercial applications. Its high torque output, precise speed control, and modular design make it an ideal choice for high-performance applications that require precise control and durability.

FEATURE CHART: MODEL 8 SERIES,SHAFT OUTPUT and SPINDLE OUTPUT DRIVES, SINGLE REDUCTION

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 8

MOTOR PILOT/HUBS

SAE A
SAE A1
SAE B
SAE B1
SAE C
SAE C1
SAE D
SAE D1

A
A1
B
B1
C
C1
D
D1

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
14T - 12/24
15T - 16/32
21T - 16/32
1-1/2”Keyed

13
14
15
16
KOO

RATIO OPTIONS

3.54, 4.00, 4.67, 5.71

03,04,4.7,05

OUTPUT SHAFT OPTIONS

OUTPUT SPINDLE OPTIONS

23T-12/24 Spline
2.00” Keyed
3.00”Keyed
20T-8/16 Spline
23T-8/16 Short
23T-8/16 Long
2.00 Round
2.56 Round
2.00 Hex
2.00 Hex
2.50 Hex
F1, F2, F2B,
F3, F5,

23
K1
K2
20
23S
23L
A1
A2
H1
H2
H1B
F1, F2, F2B
F3, F5

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

Example of complete order code:

FEATURE CHART: MODEL 8 SERIES,SHAFT OUTPUT and SPINDLE OUTPUT DRIVES, DOUBLE REDUCTION

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 8

MOTOR PILOT/HUBS

SAE A
SAE A1
SAE B
SAE B1
SAE C
SAE C1

A
A1
B
B1
C
C1

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
1-1/2”Keyed

13
6B
14
15
KOO

RATIO OPTIONS

15.92, 18.78
21.23, 24.76
30.33, 37.71
43.36, 51.43

15, 18
21, 24
30, 37
43, 51

OUTPUT SHAFT OPTIONS

OUTPUT SPINDLE OPTIONS

23T-12/24 Spline
2.00” Keyed
3.00”Keyed
20T-8/16 Spline
23T-8/16 Short
23T-8/16 Long
2.00 Round
2.56 Round
2.00 Hex
2.00 Hex
2.50 Hex
F1, F2, F2B,
F3, F5,

23
K1
K2
20
23S
23L
A1
A2
H1
H2
H1B
F1, F2, F2B
F3, F5

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

B4L

Example of complete order code:

B4L

Motor mounting chart
Motor mounting hole dimensions	Diameter
SAE A, A1 (4)-1/2"-13UNC 2B thd holes on 106.38 B.C.	φ82.58(+0.12/0)
SAE B, B1 (2)-1/2"-13UNC 2B thd holes on 146.05 B.C.	φ101.62(+0.13/0)
SAE C, C1 (4)-1/2"-13UNC 2B thd holes on 161.93 B.C. OR (2)-5/8"-11UNC 2B thd holes on 180.98 B.C.	φ127.02(+0.13/0)
SAE D, D1 (4)-3/4"-10UNC 2B thd holes on 228.60 B.C.	φ152.43(+0.13/0)
“O” Ring size: SAE A-#042, SAE B-#155, SAE C-#159, SAE D-#163

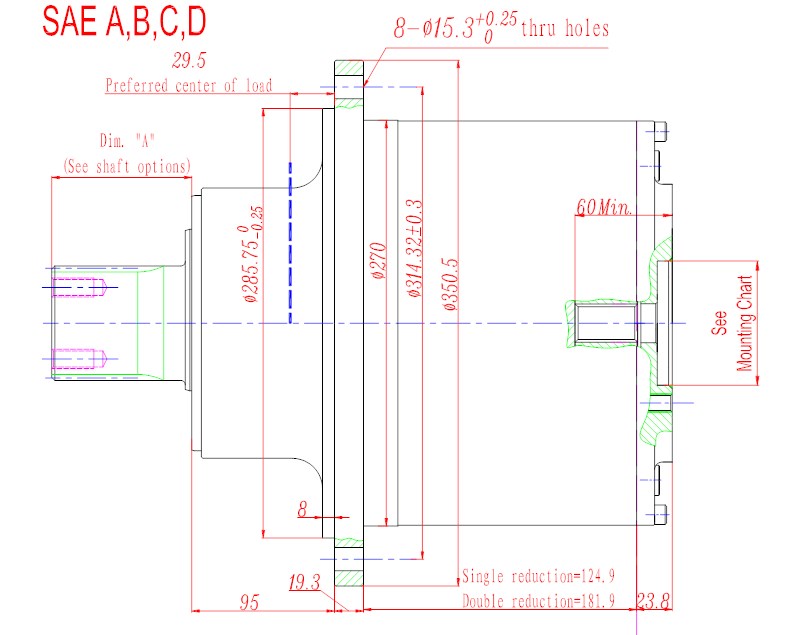

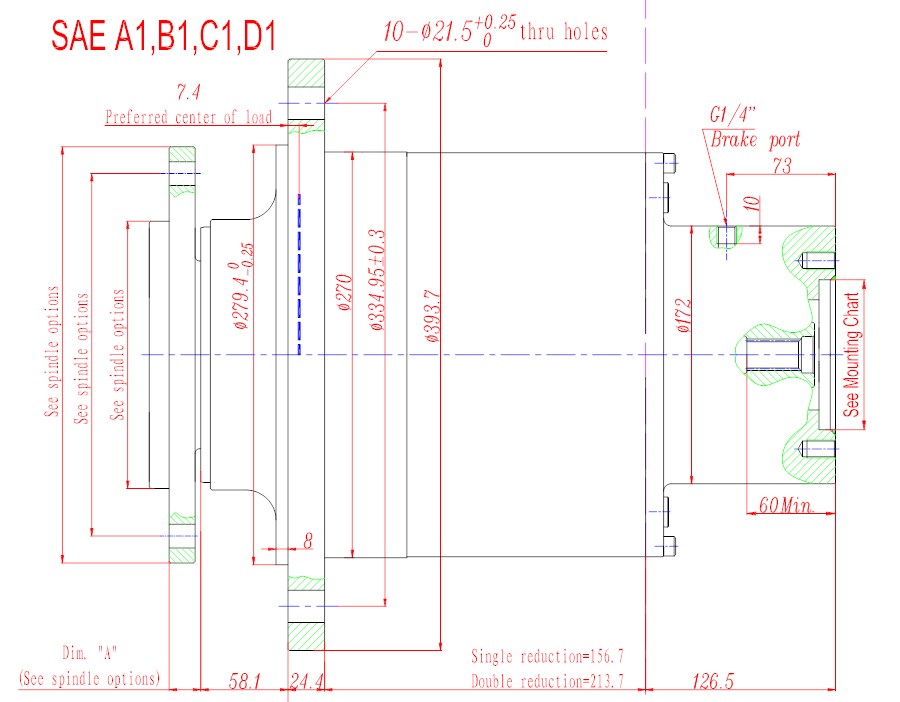

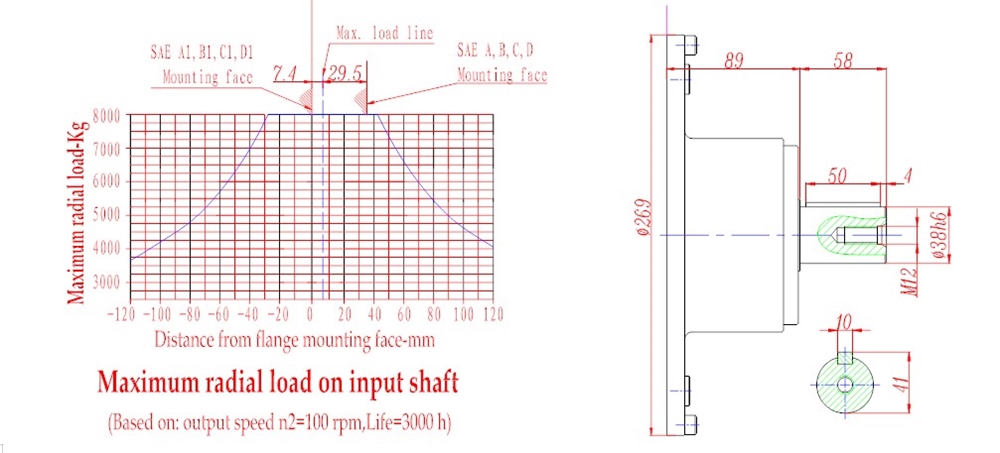

Model 8 Series, Shaft output and Spindle output drives---dimensions

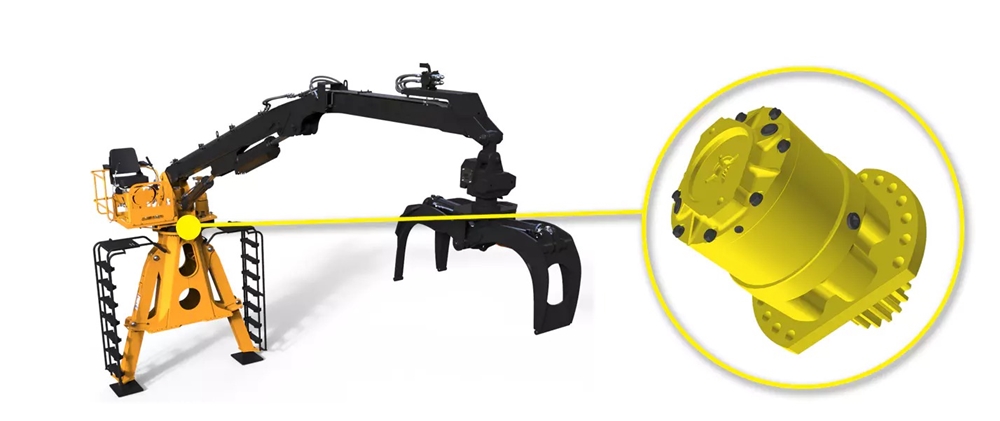

Application of 8-series planetary gearbox The Model 8 series planetary gearbox is a multifunctional gearbox that can be used in various industrial and commercial applications that require high torque output, precise speed control, and efficient power transmission. The following are some specific applications of the Model 8 series planetary gearbox: Model 8 series planetary gearbox Material-handling equipment: Material-handling equipment, such as conveyor systems and elevators, requires accurate speed control and high torque output to operate effectively. The Type 8 series planetary gearbox is used in the drive system of these machines to provide necessary power and control for efficient material handling. Packaging machinery: Packaging machinery, such as filling and sealing machines, require precise speed control and high torque output to operate effectively. The Type 8 series planetary gearbox is used in the drive system of these machines, providing the power and precise control required for efficient and reliable operation. Robots: Robotic applications require high precision, control, and torque output to achieve efficient operation. The Model 8 series planetary gearbox is used as a driving system for robot applications, providing the necessary power and control for precise and efficient motion. Renewable energy: Renewable energy applications such as wind turbines and solar trackers require precise speed control and high torque output to achieve efficient power generation. The Type 8 series planetary gearbox is used in the drive system of these machines to provide necessary power and control for efficient and reliable power generation. Mining equipment: In order to operate efficiently, mining equipment such as conveyors and crushers require high torque output and precise speed control. The Type 8 series planetary gearbox is used in the drive system of these machines to provide the necessary power and control for efficient mining operations. Overall, the Model 8 series planetary gearbox is a reliable and efficient solution suitable for various industrial and commercial applications that require high power density, precise control, and durability. Its versatility, modular design, and high-performance characteristics make it an ideal choice for various applications.

How to choose a suitable 8-series planetary gearbox? Choosing a practical 8-series planetary gearbox requires careful consideration of several key factors. The following are some important factors to consider when selecting the Type 8 series planetary gearbox: 1. Torque requirements: Determine the torque requirements for a specific application. The torque capacity of the gearbox should be sufficient to handle the maximum torque load of the machine. 2. Speed requirements: Determine the speed requirements for specific applications. The gearbox should be able to provide necessary speed control to meet the requirements of the machine. 3. Input power: Determine the input power requirements for a specific application. The gearbox should be compatible with the power supply (such as an electric motor) used in the machine. Model 8 series planetary gearbox 4. Installation requirements: Determine the installation requirements for specific applications. The gearbox should be compatible with the installation configuration of the machine. 5. Environmental factors: Consider environmental factors that may affect the operation of the gearbox, such as temperature, humidity, and exposure to dust or water. 6. Maintenance requirements: Consider the maintenance requirements of the gearbox, such as maintenance frequency, maintenance convenience, and the availability of replacement parts. 7. Manufacturer reputation: Consider the importance and experience of gearbox manufacturers in producing high-quality and reliable transmissions. Considering these factors and consulting with transmission experts or manufacturers, you can choose the appropriate Type 8 series planetary gearbox for your specific application. Choosing a suitable gearbox helps to ensure the reliable and efficient operation of the machine, while reducing maintenance costs and downtime.

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

Hot Tags: Model 8 Series Planetary Gearbox Replacement Of Auburn (shaft Output And Spindle Output Drives) - Buy Planetary Gearbox,Planetary Gearbox Replacement Of Auburn,Model 8 Series Planetary Gearbox Replacement Of Auburn (shaft Output And Spindle Output Drives) Product on Raydafon
