TL4000 Heavy Duty Telescopic Wheel Loader for Material Movement

TL4000 Telescopic Wheel Loader Features:1.The telescopic boom which can reach 5.53m greatly increase it's working scope.2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.3.The seals,valve &joystick handle are reliable products whi......

Send Inquiry

Product Description

TL4000 Telescopic Wheel Loader

Features: 1.The telescopic boom which can reach 5.53m greatly increase it's working scope. 2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.3.The seals,valve &joystick handle are reliable products which guarantee that it's a reliable long lasting machine.4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.5.FOPS ROPS cabin and A/C system makes the operating safe and convenient 6.Quick coupling system, mechanic joystick makes the operating easy and convenient7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

Model	TL1500	TL2500	TL4000
Overall Length	4390mm	5000mm	7800mm
Overall width	1870mm	1950mm	2420mm
Overall Height	2720mm	2800mm	2420mm
Standard Tire	20.5-16	16/70-20	17.5-25
Max. Lifting Height	4500mm	4650mm	5530mm
Rated Load	1500kgs -1800kgs	2500Kgs-2800kgs	4000Kgs-4500kgs
Max.Speed	17km/h	20km/h	36km/h
Wheelbase	2400mm	2430mm	2845mm
Min Turning Radius	4950mm	5600mm	6570mm
Track	1345mm	1480mm	1825mm
Weight	4360kg	5500kg	10200kg
System Pressure	20Mpa	20Mpa	20Mpa
Working Oi Flow	104L/min	104L/min	184L/min
Axle	With Hub Reducer	With Hub Reducer	With Hub Reducer

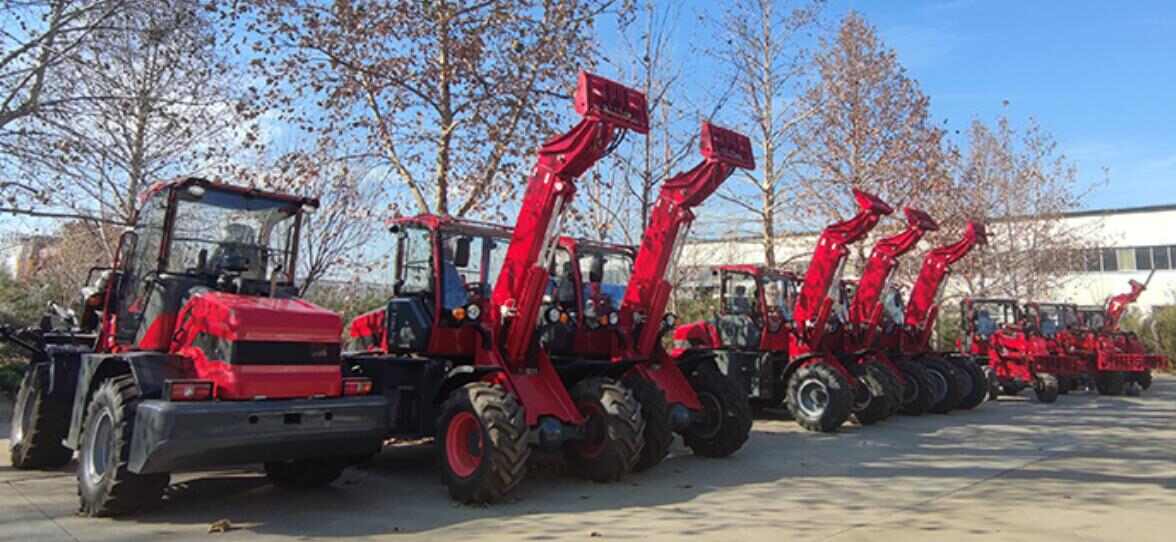

We have over 10 years of production experience, and after years of improvement and development, this company is the first in China to start producing multifunctional telescopic wheel loaders. Our products have matured and been sold around the world, winning a good market response. Our two series of telescopic wheel loaders and mini skid steer loaders can cover almost all types of work. More importantly, they are all multifunctional. This machine has a quick connect system and hydraulic output, and you can use hundreds of accessories to complete various tasks. With reliable quality, experienced engineering team, and professional after-sales service, we can become your long-term partner. Welcome to join us!

1. Question: How can I choose the appropriate Loader based on my specific needs? Answer: Choosing the appropriate Loader requires considering multiple factors: Application scenario: Determine the environment in which you will use Loader (such as construction sites, agriculture, landscaping, etc.). Load capacity: Evaluate the maximum load capacity and lifting height you need. Operational flexibility: If you need to operate on narrow or uneven ground, a tracked loader may be more suitable; If the ground is relatively flat and requires quick movement, a wheeled loader is a better choice. Attachment compatibility: Confirm whether the Loader supports multiple attachments (such as buckets, grab buckets, forks, etc.) to meet the needs of different tasks.

2. Q: What are the key performance indicators to pay attention to when purchasing a Loader? Answer: When purchasing a Loader, the following key performance indicators are worth paying close attention to: Rated load capacity: Ensure that the Loader can carry the maximum weight you need. Raise height and range: Confirm the maximum lift height and operating range of the Loader to meet your specific needs. Engine power: Higher engine power can provide stronger power output, especially during heavy load operation. Fuel efficiency: Choosing a loader with high fuel efficiency can reduce long-term operating costs. Operating comfort and safety: Good cab design and safety features can improve the efficiency and safety of operators.
